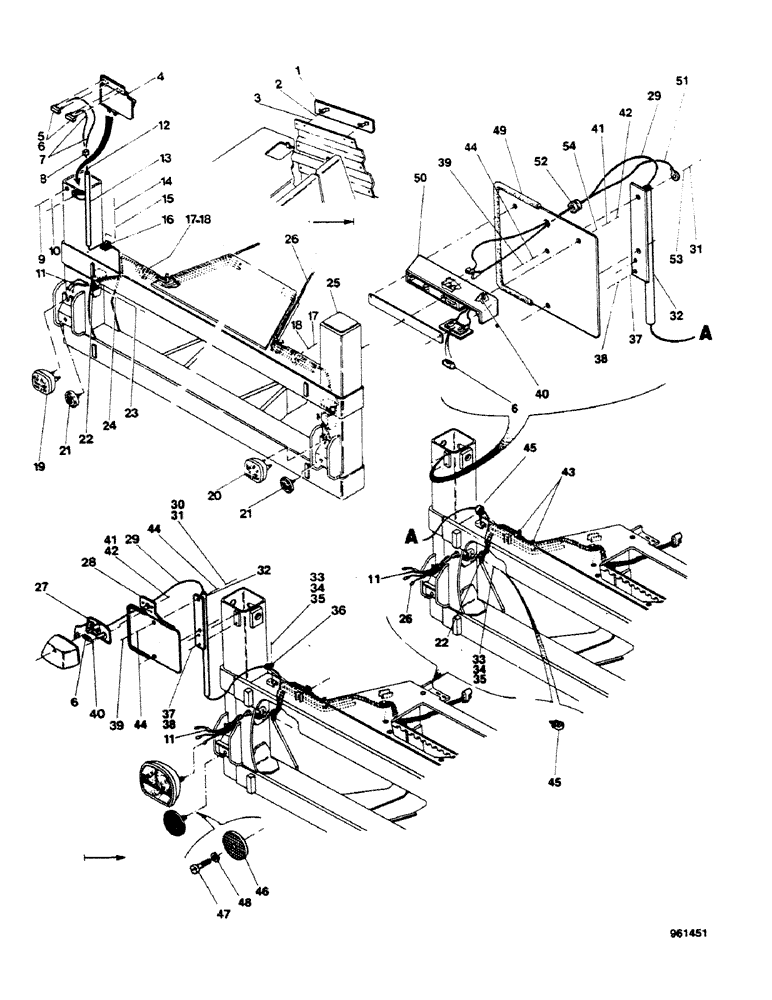

Запчасти Case 580G (536) - REAR LIGHTS - NUMBER PLATES (09) - CHASSIS/ATTACHMENTS

1

E43071

PLATE

SPARE PART number

1шт.

2

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

3

195-525

WASHER,3/8", SAE

2шт.

4

E38881

PLATE

number

1шт.

5

E38934

LIGHT

2шт.

E44463 + E44465 + E44332 + E44416 (2) + 892-1005 (2) + 825-1005 (2) + E44344 + 113-2 (2) + D88514 + D120671 + 192-19 (4) + 129-101 (2) + E35328

1шт.

6

E32057

BULB

shuttle

1-2шт.

7

E35050

ELECTRICAL WIRE

SPARE PART

2шт.

8

E35328

FITTING

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

E35328

FITTING

1шт.

12

E41235

ELECTRICAL WIRE

WIRE

1шт.

13

E40035

GUARD

1шт.

14

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

1шт.

16

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

REF

INSTRUCTION

LIGHT rear RH See Figure 92

1шт.

20

REF

INSTRUCTION

LIGHT rear LH See Figure 92

1шт.

21

E44662

FLAG

reflector

2шт.

3233791R2 + 182-516 + 192-18 + 129-17

1шт.

22

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

2шт.

23

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

24

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

25

E44699

FRAME

1шт.

E45759 + E45702 (3) + E45703 (1) + E45604 (4) + L18331 (2)

1шт.

25

E45759

FRAME

, Serial Range: -3.948.949

1шт.

25

E45588

FUNNEL

FRAME, Start Serial: 3.948.950

1шт.

26

E44932

HARNESS

2шт.

27

E44332

LIGHT ASSY.

1шт.

E45930 + E45933 + E41289

1шт.

28

E44463

PLATE

number

1шт.

29

E44344

ELECTRICAL WIRE

WIRE

1шт.

30

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

31

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

32

E44465

BRACKET

SPARE PART

1шт.

33

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

3шт.

34

92-5

LOCK WASHER,5/16"

3шт.

35

25-225

SQUARE NUT,Sq, 5/16"-24

3шт.

36

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

1шт.

37

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

38

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

39

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

39

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

40

E44416

SCREW

2шт.

41

892-1005

LOCK WASHER

WASHER lock

2шт.

42

825-1005

NUT,M5, Cl 8

2шт.

43

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP tie

4шт.

44

195-518

WASHER,1/4", SAE

2/4шт.

45

E41161

FASTENER

3шт.

46

3233791R2

REFLECTOR

2шт.

47

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

2шт.

48

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

2шт.

49

E45930

PLATE ASSY.

number

1шт.

50

E45933

LIGHT ASSY.

1шт.

51

E41289

ELECTRICAL WIRE

WIRE ground

1шт.

52

E10160

GROMMET

1шт.

53

193-57

LOCK WASHER,Ext Tooth, 1/4"

2шт.

54

195-513

WASHER,#10

flat

2шт.
