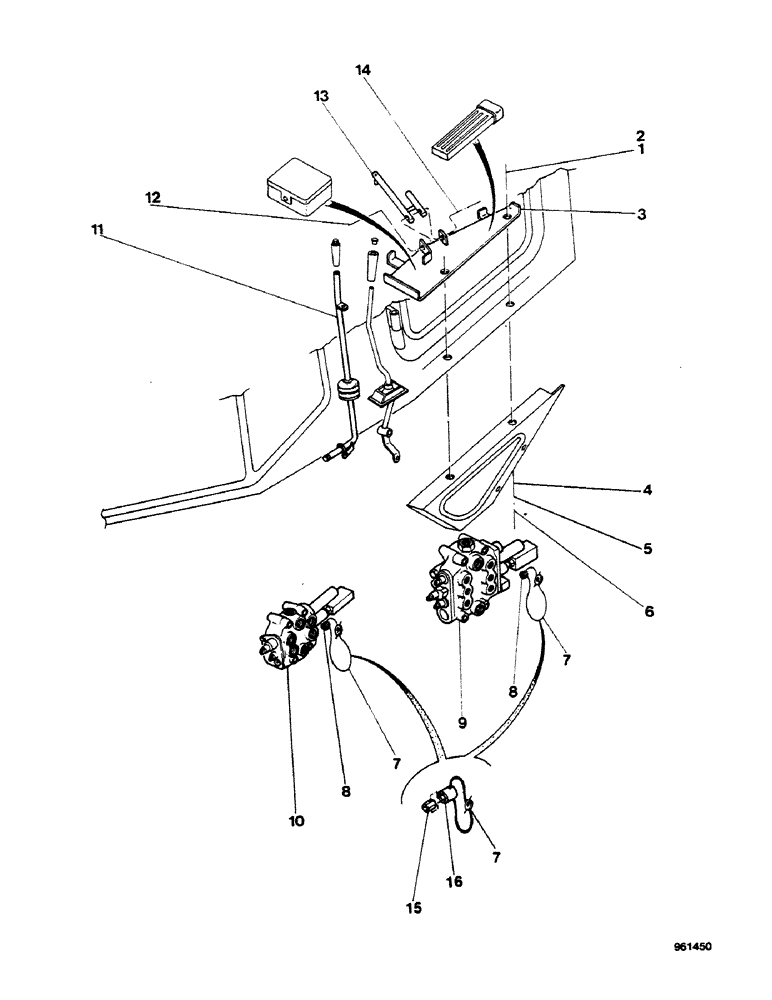

Запчасти Case 580G (532) - LOADER - CONTROL VALVE AND CONTROL LEVER LOCK (09) - CHASSIS/ATTACHMENTS

1

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

2

195-103

WASHER,5/16"

flat

2шт.

3

E43157

PLATE

SPARE PART

1шт.

4

195-103

WASHER,5/16"

flat

2шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

6

9635082

NUT,5/16" - 18, Gr 5

2шт.

7

E33963

SEAL

SPARE PART lead

1шт.

8

E33771

NUT

SPARE PART accorn, E45927 + E45928

1шт.

9

REF

INSTRUCTION

VALVE (See Figure 272), 3T

1шт.

10

REF

INSTRUCTION

VALVE (See Figure 270), 2T

1шт.

11

E43066

LEVER

1шт.

12

113-46

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

1шт.

13

E43060

RETAINER

SPARE PART

1шт.

14

131-48

LOCK NUT,1/4"-20, GB

1шт.

15

E45927

NUT

accorn

1шт.

16

E45928

PLUG

1шт.
