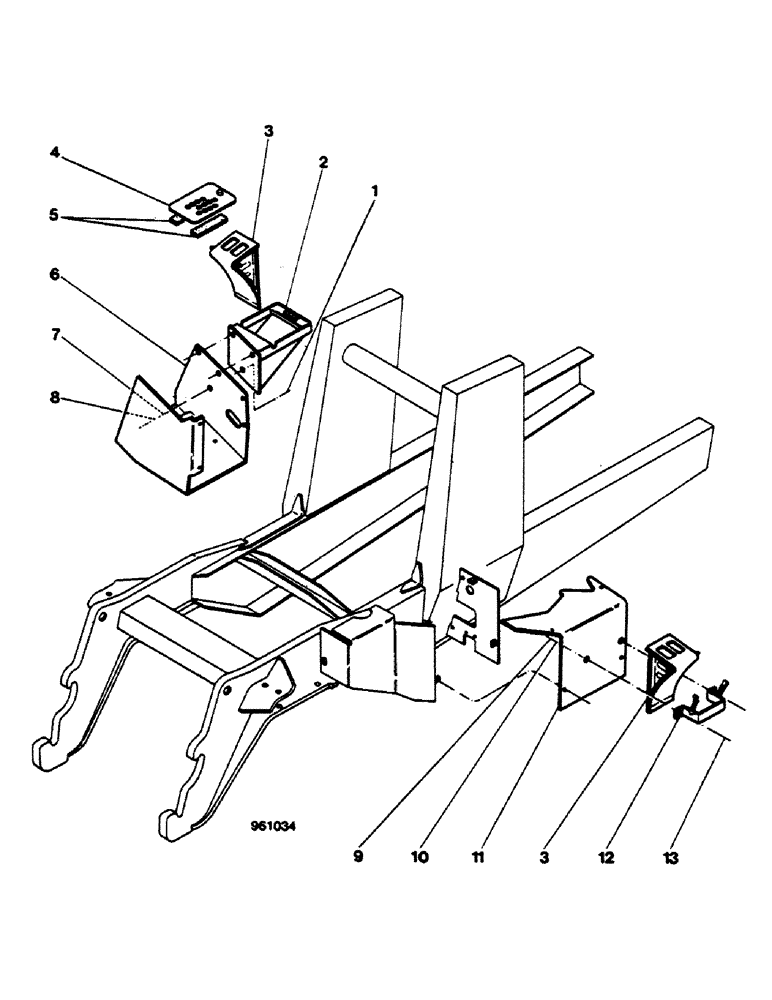

Запчасти Case 580G (528) - WHEEL CHOCKS (09) - CHASSIS/ATTACHMENTS

1

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3шт.

2

E43246

SUPPORT

SPARE PART

1шт.

3

E43258

WHEEL

chock

2шт.

4

E43255

PLATE

SPARE PART step, Includes: Ref. 5

1шт.

5

E41914

STRIP

SPARE PART rubber

2шт.

6

REF

INSTRUCTION

BOX battery, See figure 66

1шт.

7

192-21

LOCK WASHER,3/8"

3шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

3шт.

9

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

11

REF

INSTRUCTION

COVER, See figure 420

1шт.

12

E43271

BRACKET

1шт.

13

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.
