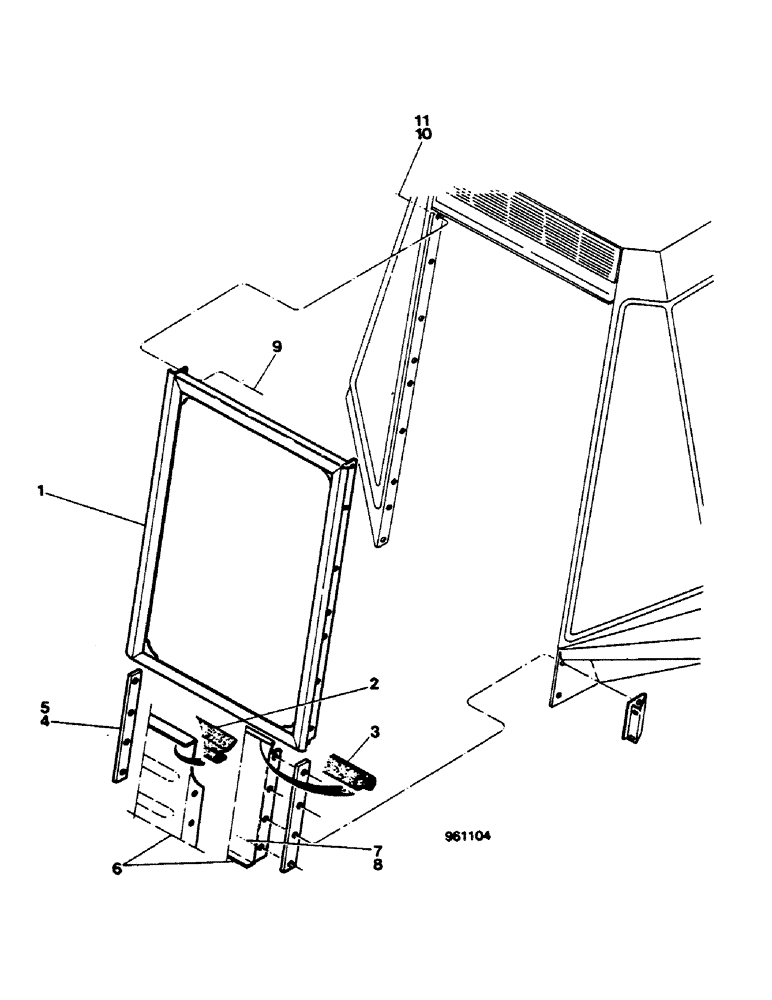

Запчасти Case 580G (526) - CAB - FIXED REAR WINDOW (09) - CHASSIS/ATTACHMENTS

1

E42871

WINDOW

1шт.

2

F44711

SEAL

1шт.

3

F42780

SEAL

E46365

1шт.

3

E46365

LINING

SEAL

1шт.

4

E43894

BUSHING

Dep

2шт.

5

E43895

BUSHING

SPARE PART Axi

2шт.

6

REF

INSTRUCTION

PANEL (See figure 442)

1шт.

7

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

8шт.

9

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

14шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

14шт.

11

7770

NUT,Hex, 1/4 - 20, Cl 5

14шт.
