(525C) - WINDSHIELD WASHER - RESERVOIR

Запчасти Case 580G (525C) - WINDSHIELD WASHER - RESERVOIR (09) - CHASSIS/ATTACHMENTS

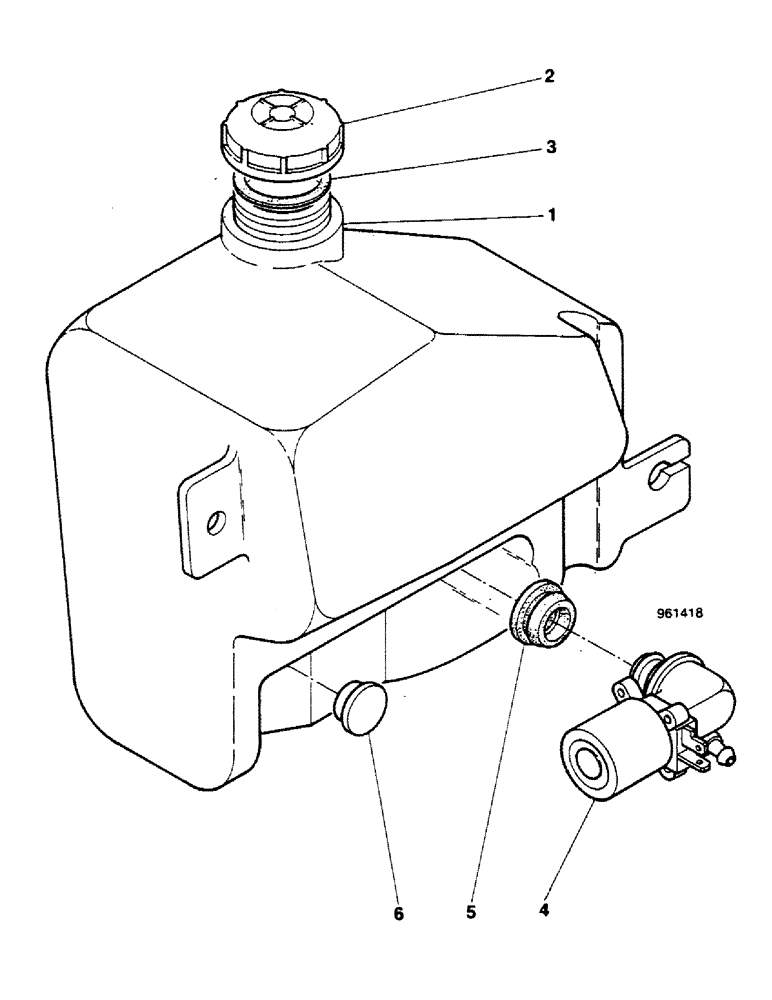

Схема запчастей Case 580G - (525C) - WINDSHIELD WASHER - RESERVOIR (09) - CHASSIS/ATTACHMENTS
1
4
5
3
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

E46274

TANK

RESERVOIR ASSY- windshield washer, Includes: Ref. 1 - 6

1шт.

E45895

RESERVOIR ASSY.

SPARE PART RESERVOIR ASSY- windshield washer, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

RESERVOIR

1шт.

2

E46501

PLUG

1шт.

3

E46502

GASKET

1шт.

4

E46499

PUMP

1/2шт.

5

E46500

BUSHING

SPARE PART SEAL

1/2шт.

6

E46503

PLUG

Used with E46274 only

1шт.
