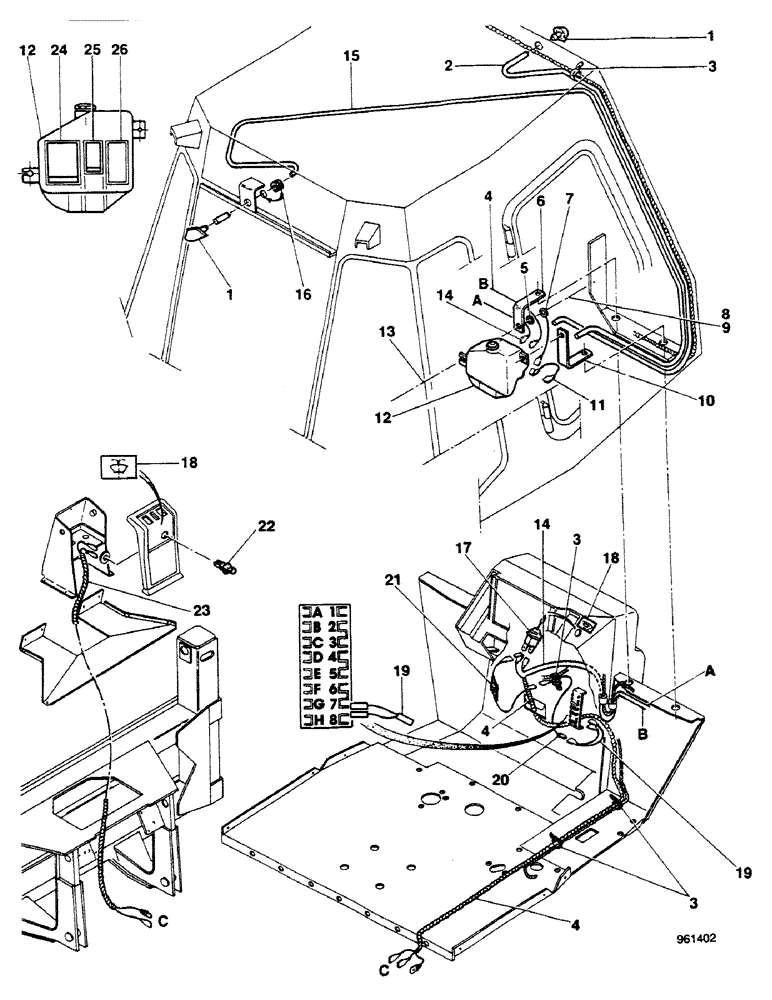

Запчасти Case 580G (525A) - WINDSCREEN WASHER FRONT AND REAR (09) - CHASSIS/ATTACHMENTS

1

E43769

SPRAY

NOZZLE

2шт.

2

E44138

TUBE

1шт.

3

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP CLAMP

3/4шт.

4

E45893

HARNESS

1шт.

5

193-68

LOCK WASHER,Int Tooth, 3/8"

1шт.

6

E44118

BRACKET

SPARE PART

1шт.

7

E36815

ELECTRICAL WIRE

WIRE

1шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.

9

192-21

LOCK WASHER,3/8"

2шт.

10

E44119

BRACKET

SPARE PART

1шт.

11

E30768

ELECTRICAL WIRE

WIRE

1шт.

12

E45895

RESERVOIR ASSY.

SPARE PART 2 pump See Figure 525C

1шт.

E45895 + Ref. 24 + Ref. 25 + Ref. 26

1шт.

13

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

13

195-104

WASHER,3/8"

flat

2шт.

14

E45858

ELECTRICAL WIRE

WIRE

1шт.

15

E45898

TUBE

1шт.

16

E10160

GROMMET

1шт.

17

E40666

SWITCH

1шт.

18

321-4847

DECAL

2шт.

19

E43889

ELECTRICAL WIRE

WIRE

1шт.

20

E43890

ELECTRICAL WIRE

WIRE

1шт.

21

E37772

FUSE

HOLDER

1шт.

21

E37773

FUSE

1шт.

22

E15246

IGNITION SWITCH

1шт.

23

E45894

HARNESS

1шт.

24

REF

INSTRUCTION

DECAL (See figure 548)

1шт.

25

REF

INSTRUCTION

DECAL (See figure 548)

1шт.

26

REF

INSTRUCTION

DECAL (See figure 548)

1шт.
