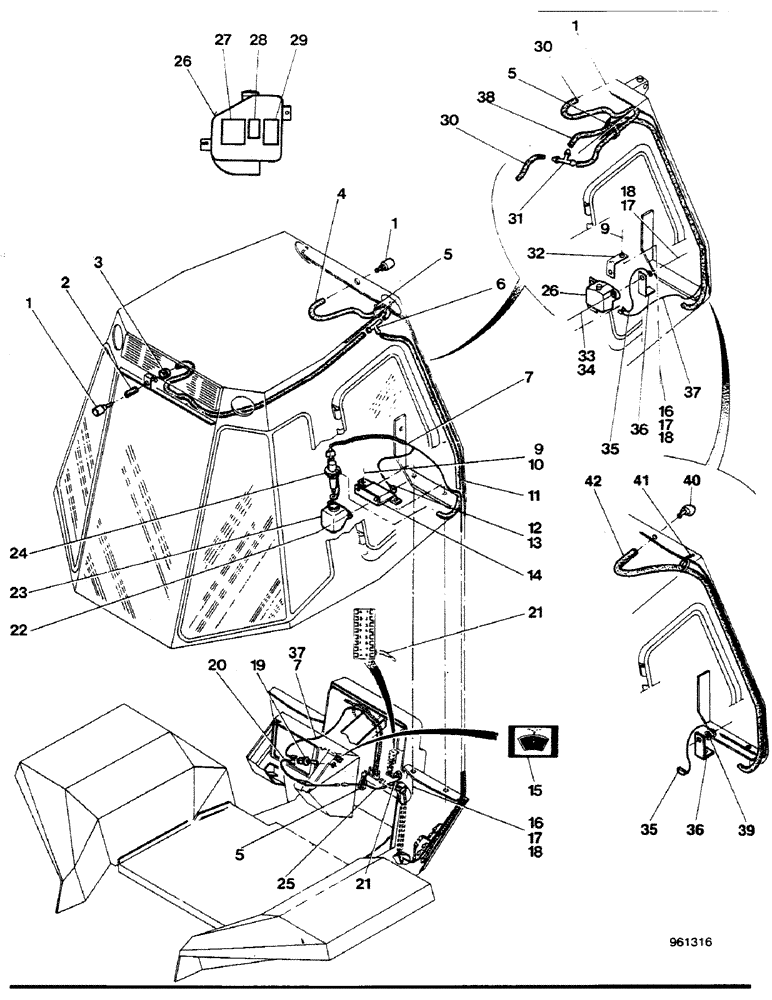

Запчасти Case 580G (524) - WINDSCREEN WASHER (09) - CHASSIS/ATTACHMENTS

1

E43769

SPRAY

NOZZLE

2шт.

2

E42983

TUBE

, Serial Range: -3.802.975

1шт.

3

E10160

GROMMET

1шт.

4

E42982

TUBE

, Serial Range: -3.802.975

1шт.

5

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP CLAMP, Serial Range: -3.808.596

3-7шт.

6

E40671

FITTING

SPARE PART, Serial Range: -3.802.975

1шт.

7

E44042

HARNESS

, Serial Range: -3.802.975

1шт.

9

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

10

195-104

WASHER,3/8"

flat, Serial Range: -3.802.975

2шт.

11

E40667

TUBE

, Serial Range: -3.802.975

1шт.

12

193-6

LOCK WASHER,Ext Tooth, #10

, Serial Range: -3.802.975

2шт.

13

129-37

NUT,#10-32

, Serial Range: -3.802.975

2шт.

14

E42979

BRACKET

, Serial Range: -3.802.975

1шт.

15

321-4847

DECAL

1шт.

16

195-104

WASHER,3/8"

flat

2шт.

17

192-21

LOCK WASHER,3/8"

4-2шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

4-2шт.

19

E40666

SWITCH

, Start Serial: 3.802.976

1шт.

20

E37772

FUSE

HOLDER, Includes: Ref. 20

1шт.

20

E37773

FUSE

1шт.

21

E43889

ELECTRICAL WIRE

WIRE

1шт.

22

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

, Start Serial: 3.802.975

2шт.

23

E40673

RESERVOIR

SPARE PART, Start Serial: 3.802.975

1шт.

24

E40672

PUMP

SPARE PART, Start Serial: 3.802.975

1шт.

25

E43890

ELECTRICAL WIRE

WIRE

1шт.

26

E44132

TANK

1шт.

E46274 + Ref. 27 + Ref. 28 + Ref.29

1шт.

E44805

PLUG

SPARE PART

1шт.

26

E46274

TANK

1 pump See Figure 525C

1шт.

27

REF

INSTRUCTION

DECAL ( See Figure 548)

1шт.

28

REF

INSTRUCTION

DECAL ( See Figure 548)

1шт.

29

REF

INSTRUCTION

DECAL ( See Figure 548)

1шт.

30

E44140

LARGE HOSE

HOSE,LARGE, Serial Range: 3.802.976-3.808.596

2шт.

31

E44142

FITTING

, Serial Range: 3.802.976-3.808.596

1шт.

32

E44118

BRACKET

SPARE PART, Start Serial: 3.802.976

1шт.

33

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

, Start Serial: 3.802.976

2шт.

34

195-104

WASHER,3/8"

flat, Start Serial: 3.802.976

2шт.

35

E36815

ELECTRICAL WIRE

WIRE, Start Serial: 3.802.976

1шт.

36

E44119

BRACKET

SPARE PART, Start Serial: 3.802.976

1шт.

37

E43226

ELECTRICAL WIRE

WIRE, Serial Range: 3.802.576-3.808.991

1шт.

37

E45858

ELECTRICAL WIRE

WIRE, Start Serial: 3.808.992

1шт.

38

E44138

TUBE

, Start Serial: 3.802.976

1шт.

39

193-68

LOCK WASHER,Int Tooth, 3/8"

, Start Serial: 3.808.992

1шт.

40

E43769

SPRAY

NOZZLE, Start Serial: 3.808.597

1шт.

41

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP CLAMP, Start Serial: 3.808.597

2шт.

42

E44138

TUBE

, Start Serial: 3.808.597

1шт.
