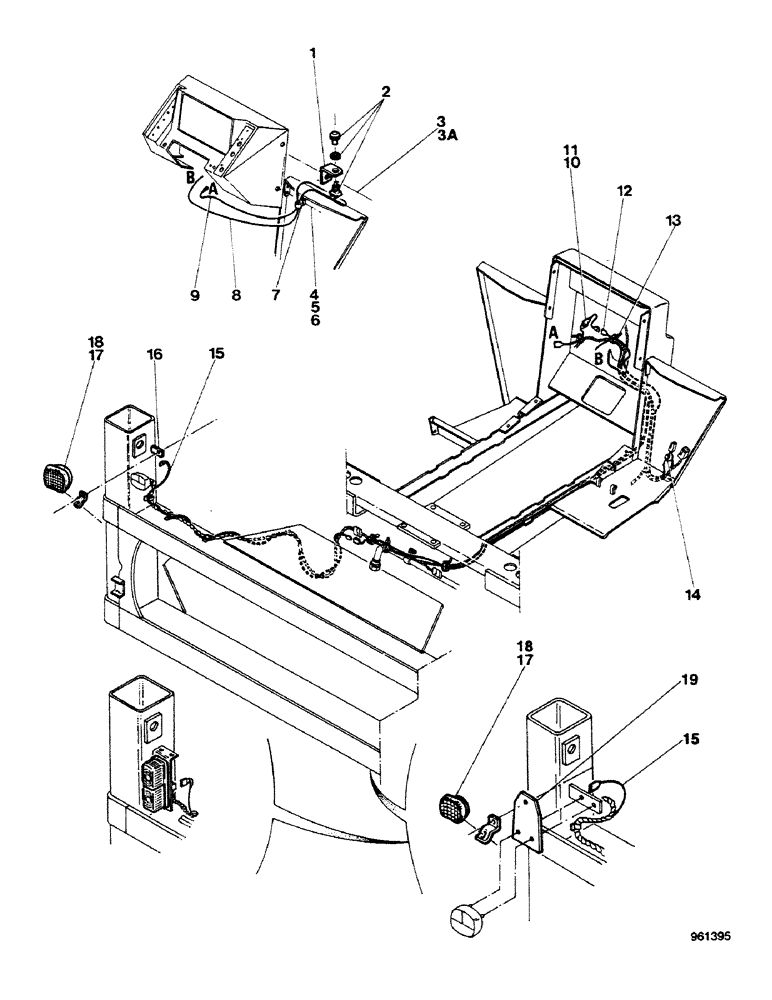

Запчасти Case 580G (522) - REAR FOG LIGHT - SIDESHIFT BACKHOE (09) - CHASSIS/ATTACHMENTS

1

E43816

LUG

1шт.

2

E42102

SWITCH

1шт.

3

121-123

BOLT,Hex Serr, 5/16" - 18 x 3/4"

1шт.

3a

193-82

LOCK WASHER,Int Tooth, 5/16"

1шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

5

92-6

LOCK WASHER,3/8"

1шт.

6

25-106

NUT,3/8"-16, G5

1шт.

7

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

1шт.

8

E43843

ELECTRICAL WIRE

WIRE

1шт.

9

E43845

ELECTRICAL WIRE

WIRE

1шт.

10

E37772

FUSE

HOLDER, Includes: Ref. 11

1шт.

11

E37773

FUSE

1шт.

12

E36816

ELECTRICAL WIRE

WIRE 55" long

1шт.

12

E45859

ELECTRICAL WIRE

WIRE 22" long

1шт.

13

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP CLAMP

4шт.

14

E35328

FITTING

1шт.

15

E43844

ELECTRICAL WIRE

WIRE

1шт.

16

E43817

LUG

E46182

1шт.

17

E42098

LIGHT

Delivered with hardware and mounting lug, Includes: Ref. 17

1шт.

17

E42609

LAMP

LENS

1шт.

18

E32056

LAMP, TAIL

LIGHT, TAIL 21W

1шт.

19

E46182

SUPPORT ASSY.

LUG

1шт.
