Запчасти Case 580G (520) - REAR FOG LIGHT - AXIAL BACKHOE WITHOUT A CAB (09) - CHASSIS/ATTACHMENTS

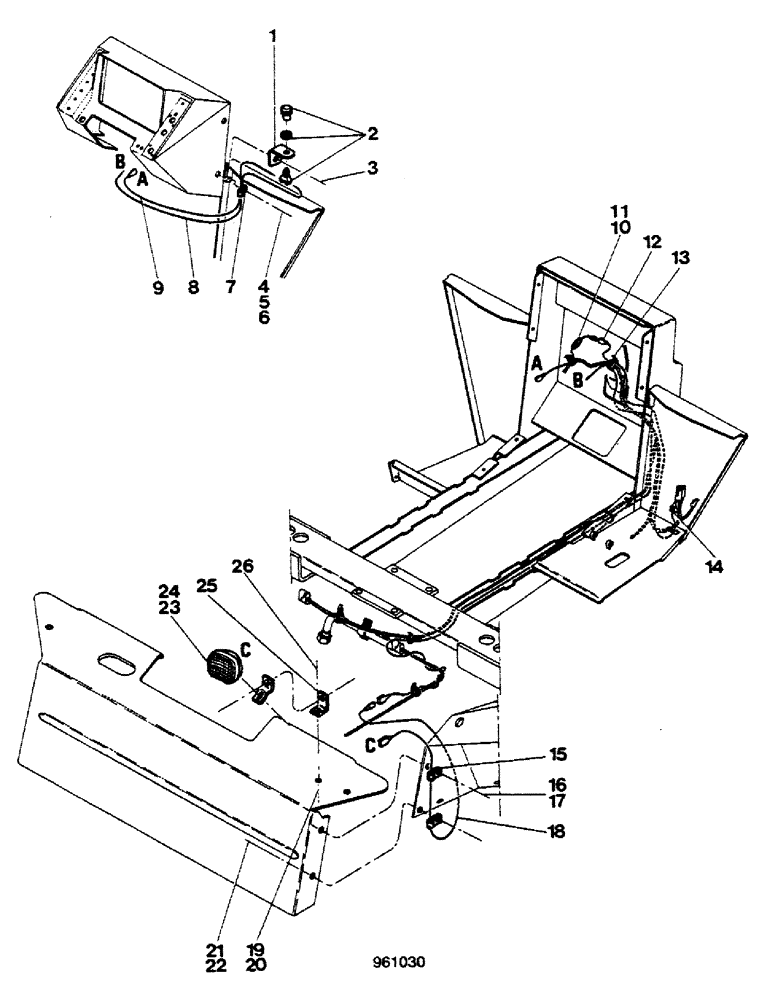

Схема запчастей Case 580G - (520) - REAR FOG LIGHT - AXIAL BACKHOE WITHOUT A CAB (09) - CHASSIS/ATTACHMENTS
3
13
8
1
25
24
22
2
20
18
5
9
19
12
16
10
11
6
21
14
7
15
23
4
26
17

Артикул

Название

Примечание

Количество

1

E43816

LUG

1шт.

2

E42102

SWITCH

1шт.

3

121-123

BOLT,Hex Serr, 5/16" - 18 x 3/4"

1шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

5

92-6

LOCK WASHER,3/8"

1шт.

6

25-106

NUT,3/8"-16, G5

1шт.

7

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

1шт.

8

E43843

ELECTRICAL WIRE

WIRE

1шт.

9

E43846

WASHER

WIRE

1шт.

10

E37772

FUSE

HOLDER, Includes: Ref. 11

1шт.

11

E37773

FUSE

1шт.

12

E36816

ELECTRICAL WIRE

WIRE

1шт.

13

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP CLAMP

4шт.

14

E35328

FITTING

1шт.

15

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

2шт.

16

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

17

9635082

NUT,5/16" - 18, Gr 5

2шт.

18

E43847

ELECTRICAL WIRE

SPARE PART

1шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

1шт.

20

9635082

NUT,5/16" - 18, Gr 5

1шт.

21

195-521

WASHER,5/16", SAE

2шт.

22

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

23

E42098

LIGHT

Delivered with hardware and mounting lug, Includes: Ref. 23

1шт.

23

E42609

LAMP

LENS

1шт.

24

E32056

LAMP, TAIL

LIGHT, TAIL 21W

1шт.

25

E43861

LUG

SPARE PART

1шт.

26

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

Выбрано товаров: 27
