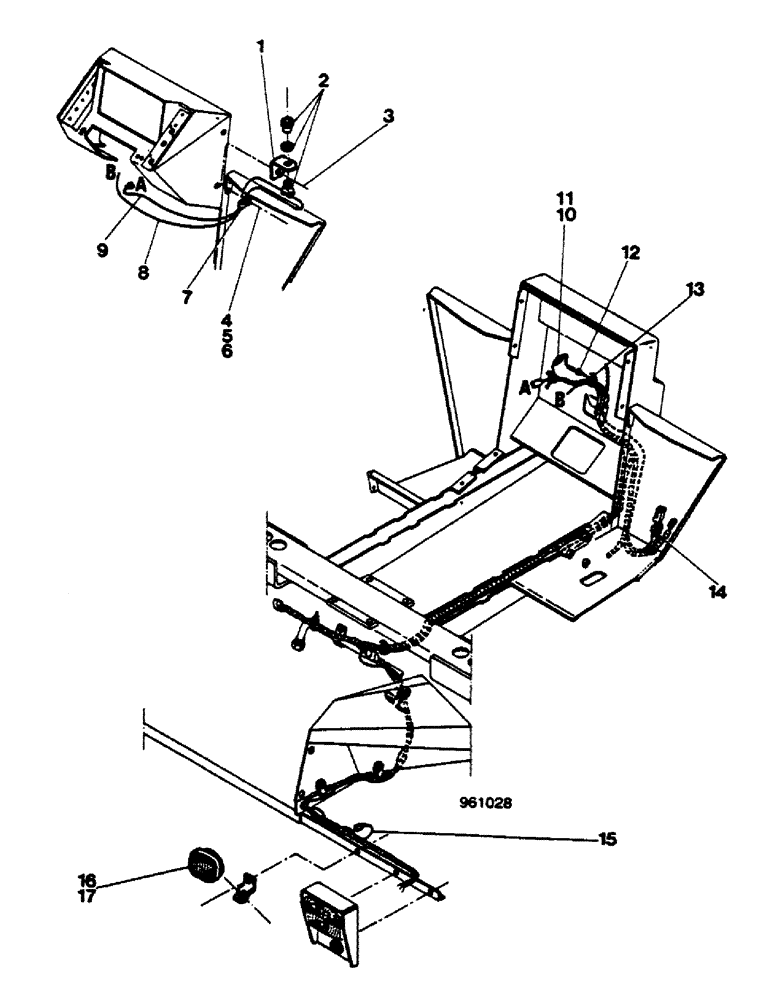

Запчасти Case 580G (516) - REAR FOG LIGHT - LOADER ONLY (09) - CHASSIS/ATTACHMENTS

1

E43816

LUG

1шт.

2

E42102

SWITCH

1шт.

3

121-123

BOLT,Hex Serr, 5/16" - 18 x 3/4"

1шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

5

92-6

LOCK WASHER,3/8"

1шт.

6

25-106

NUT,3/8"-16, G5

1шт.

7

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

1шт.

8

E43843

ELECTRICAL WIRE

WIRE

1шт.

9

E43845

ELECTRICAL WIRE

WIRE

1шт.

10

E37772

FUSE

HOLDER, Includes: Ref. 11

1шт.

11

E37773

FUSE

1шт.

12

E36816

ELECTRICAL WIRE

WIRE

1шт.

13

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP CLAMP

1шт.

14

E35328

FITTING

1шт.

15

E43847

ELECTRICAL WIRE

SPARE PART

1шт.

16

E42098

LIGHT

Delivered with hardware and mounting lug, Includes: Ref. 16

1шт.

16

E42609

LAMP

LENS

1шт.

17

E32056

LAMP, TAIL

LIGHT, TAIL 21 W

1шт.
