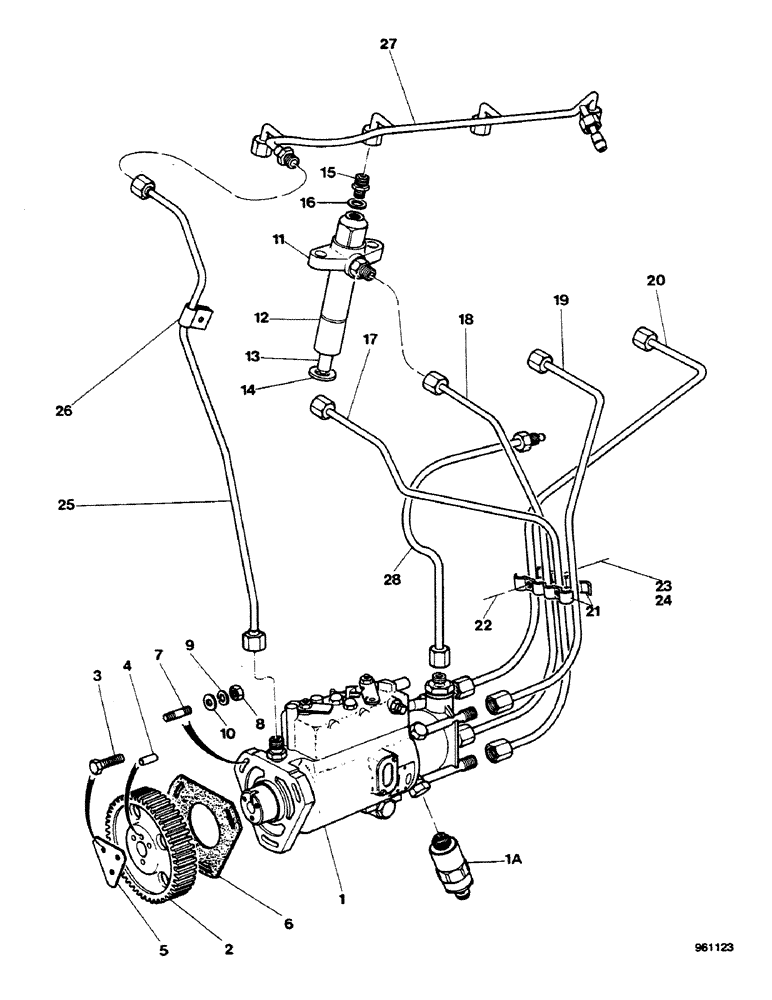

Запчасти Case 580G (056) - ENGINE - FUEL INJECTION PUMP, INJECTORS AND PIPES (03) - FUEL SYSTEM

1

K957219

PUMP, FUEL INJECTION

PUMP, INJECTION CAV 3343F-090, Includes: Ref. 1A

1шт.

1a

K957417

SWITCH

1шт.

2

K949822

GEAR

drive

1шт.

3

K612804

SCREW

3шт.

4

K14577

DOWEL

PIN

1шт.

5

K914503

LARGE PLATE

PLATE, LARGE

1шт.

6

K311313

GASKET

1шт.

7

K608163

STUD

3шт.

8

9635082

NUT,5/16" - 18, Gr 5

3шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

3шт.

10

K19471

WASHER

3шт.

11

K954826

INJECTOR ASSY.

Includes: Ref. 12 - 14

4шт.

12

K954827

NOZZLE INJECTION

HOLDER

1шт.

13

K942176

NOZZLE CAP

1шт.

14

F62390

WASHER,10mm ID x 21.01mm OD x 2.08mm Thk

1шт.

15

K620460

ADAPTER

4шт.

16

K36374

WASHER

4шт.

17

K918915

PIPE

No. 1

1шт.

18

K207322

PIPE

No. 2

1шт.

19

K954828

PIPE,18.281" L

No. 3

1шт.

20

K954829

PIPE,20.75" L

No. 4

1шт.

21

K900844

CLAMP

1-2шт.

21

K207929

CLIP

tapped

1шт.

22

K12217

SCREW,0.185" x 5/8"

5/8" long, If used

2шт.

22

K624200

SCREW,0.185" x 1/2"

1/2" long

2шт.

23

K11109

NUT

If used

2шт.

24

92-3

LOCK WASHER,#10

2шт.

25

K203135

PIPE,0.187" OD

1шт.

26

K621610

CLIP

1шт.

27

K204248

PIPE,0.187" OD

1шт.

28

K918923

PIPE

1шт.
