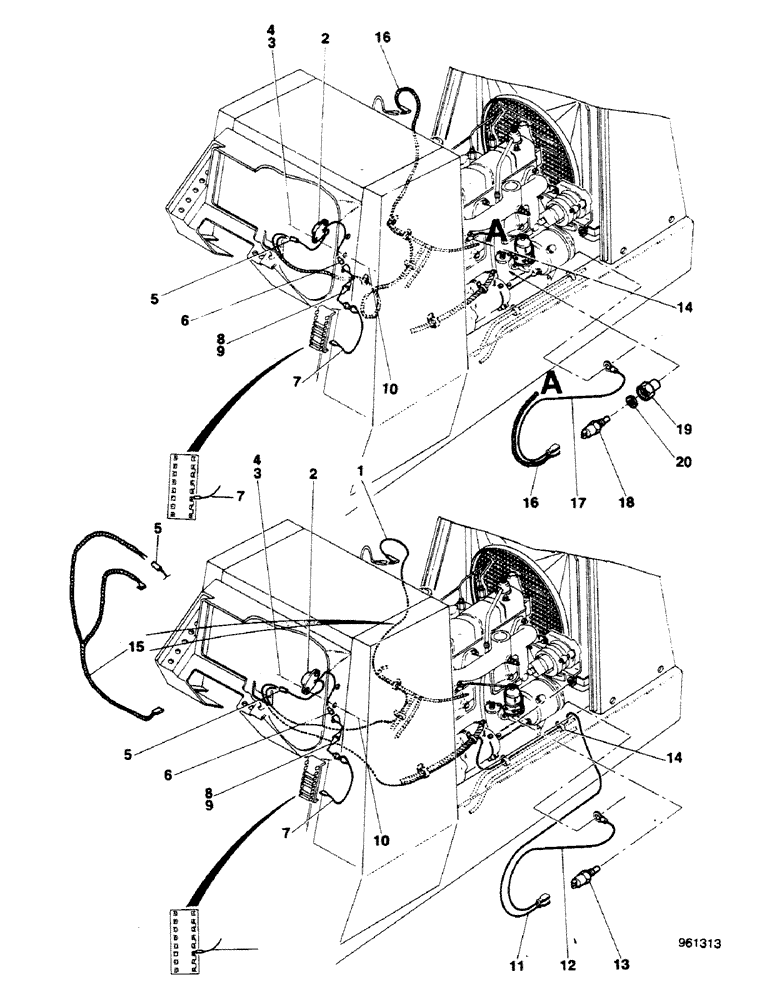

Запчасти Case 580G (500) - ALARM - WATER TEMPERATURE - ENGINE OIL PRESSURE (09) - CHASSIS/ATTACHMENTS

1

E43430

ELECTRICAL WIRE

WIRE, Serial Range: -3.936.251

1шт.

2

E45264

HORN

1шт.

3

195-505

WASHER,#4

2шт.

4

131-1409

LOCK NUT,#4-40, GB

2шт.

5

E38355

TERMINAL CONNECTOR

1шт.

6

E33324

TERMINAL CONNECTOR

SPARE PART

1шт.

7

E40264

ELECTRICAL WIRE

SPARE PART

1шт.

8

E37772

FUSE

HOLDER, Includes: Ref. 9

1шт.

9

E37773

FUSE

1шт.

10

182-575

SCREW,Cross Pan Hd, #4-40 x 3/4"

2шт.

11

E43428

ELECTRICAL WIRE

WIRE, Serial Range: -3.936.251

1шт.

12

E43429

ELECTRICAL WIRE

WIRE, Serial Range: 3.936.252-3.938.014

1шт.

13

E42885

TRANSMITTER

1шт.

E45554 Includes: Ref. 17 - 18 + 217-103

1шт.

14

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP CLAMP

5/4шт.

15

E44981

ELECTRICAL WIRE

WIRE HARNESS, Serial Range: 3.936.252-3.938.014

1шт.

16

E45585

HARNESS

E46223, Start Serial: 3.938.015

1шт.

16

E46223

HARNESS

1шт.

E45554

KIT

parts, Includes: Ref. 17 - 20

1шт.

17

E36815

ELECTRICAL WIRE

WIRE If used, Start Serial: 3.938.015

1шт.

18

E45478

TRANSMITTER

E46224, Start Serial: 3.938.015

1шт.

18

E46224

TRANSMITTER

, Start Serial: 3.938.015

1шт.

19

E45475

WASHER

ADAPTER, If used, Start Serial: 3.938.015

1шт.

20

K19500

GASKET

I.D.21/32", If used, Start Serial: 3.938.015

1шт.

20

L30674

WASHER

I.D.17/32", If used

1шт.
