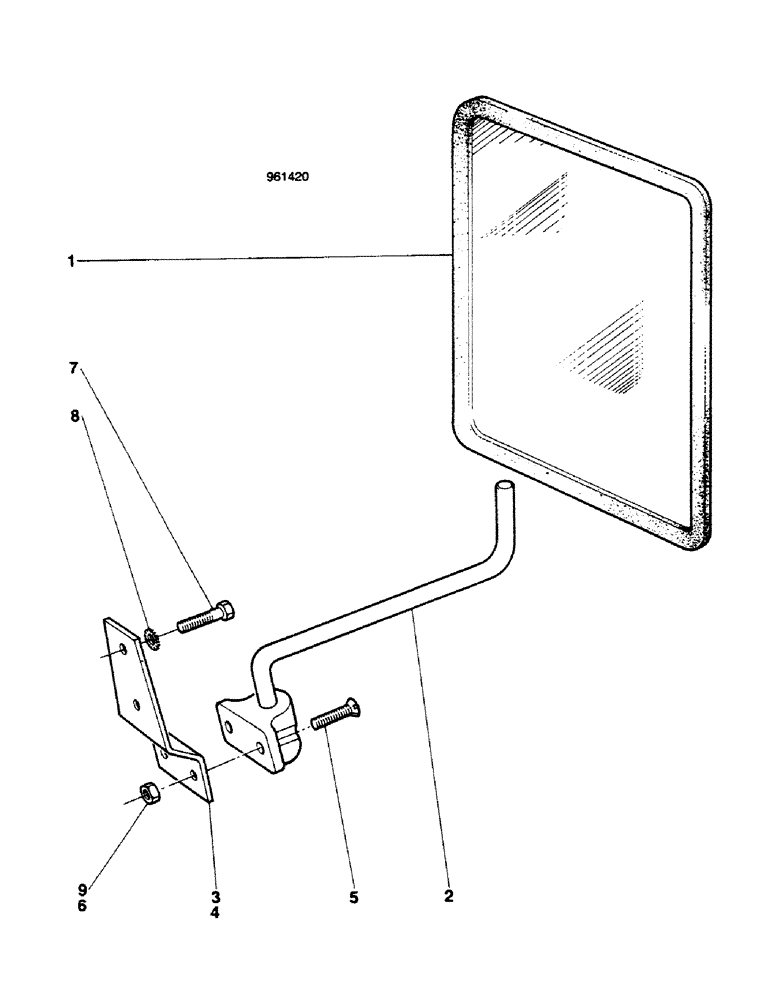

Запчасти Case 580G (497C) - REAR VIEW MIRRORS STARTING FROM NO. 3.812.178 (09) - CHASSIS/ATTACHMENTS

1

3399576R1

MIRROR

outside

2шт.

2

3399580R1

HOLDER

2шт.

3

E46189

BRACKET

RH

1шт.

4

E46188

BRACKET

LH

1шт.

5

171-220

SCREW,Sl Flat Hd, 5/16" - 18 x 7/8"

4шт.

6

9635082

NUT,5/16" - 18, Gr 5

4шт.

7

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

4шт.

8

193-68

LOCK WASHER,Int Tooth, 3/8"

4шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

4шт.
