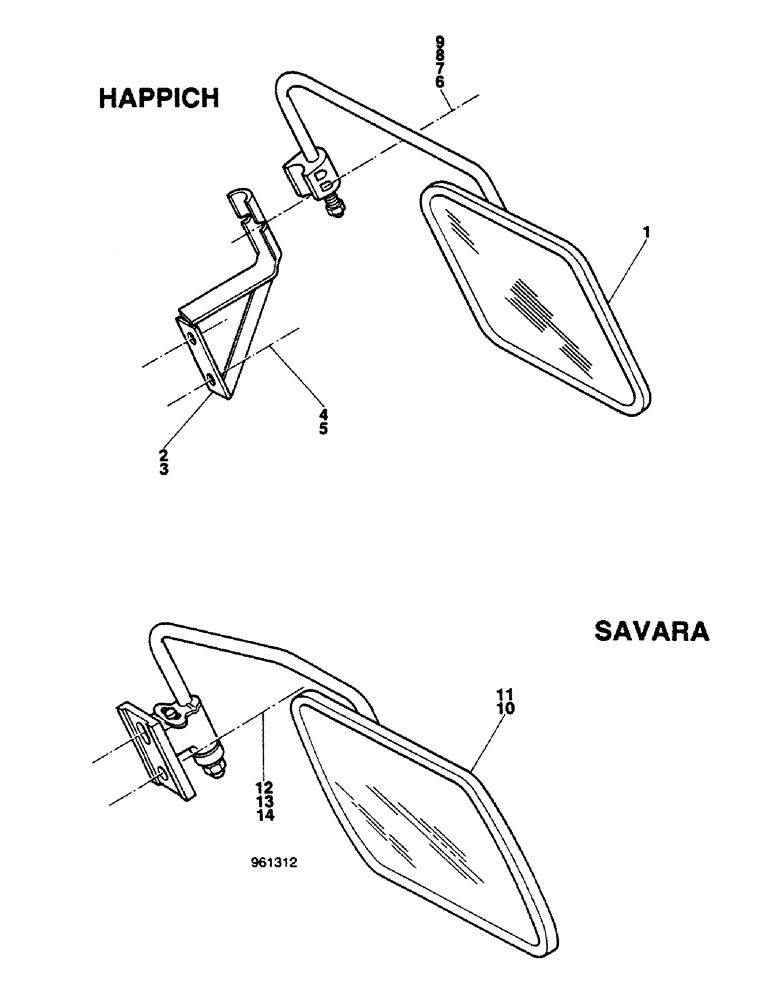

Запчасти Case 580G (497A) - REAR VIEW MIRRORS STARTING FROM NO. 3.808.597 UP TO NO. 3.812.177 (09) - CHASSIS/ATTACHMENTS

1

E34845

MIRROR

outside

2шт.

2

E45833

BRACKET

RH

1шт.

3

F45836

BRACKET LH

1шт.

4

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

4шт.

5

192-21

LOCK WASHER,3/8"

4шт.

6

61-416

HEX SOC SCREW,1/4"-20 x 1"

4шт.

7

195-518

WASHER,1/4", SAE

4шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

4шт.

9

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

10

E45224

MIRROR

outside - RH

1шт.

E46189 + 3399576R1 + 3399580R1 See figure 497C

1шт.

11

E45225

MIRROR

outside - LH

1шт.

E46188 + 3399576R1 + 3399580R1 See figure 497C

1шт.

12

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

4шт.

13

192-21

LOCK WASHER,3/8"

4шт.

14

195-522

WASHER,5/16"

flat

4шт.
