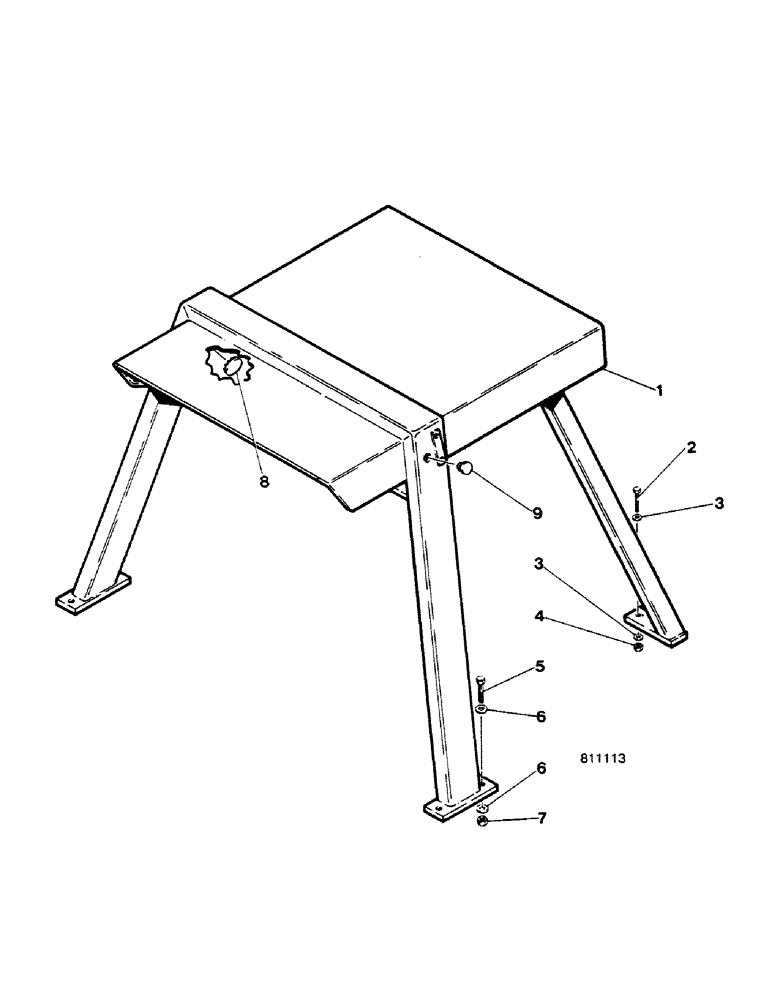

Запчасти Case 580G (494) - ROPS CANOPY (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

CANOPY ROPS

1шт.

2

113-2441

BOLT,Hex, 1/2" - 13 x 2", Gr 8

4шт.

3

196-16

WASHER,.521" x 1" x .179", HDN

flat

8шт.

4

129-184

NUT,1/2"-13, G8

4шт.

5

113-774

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

4шт.

6

196-31

WASHER

flat

8шт.

7

129-138

NUT,3/4"-10, G8

4шт.

8

D93716

PLUG,73.mm ID x 88.9mm OD

2шт.

9

353-413

PLUG,Dome, 1.187" hole, Nylon

2шт.
