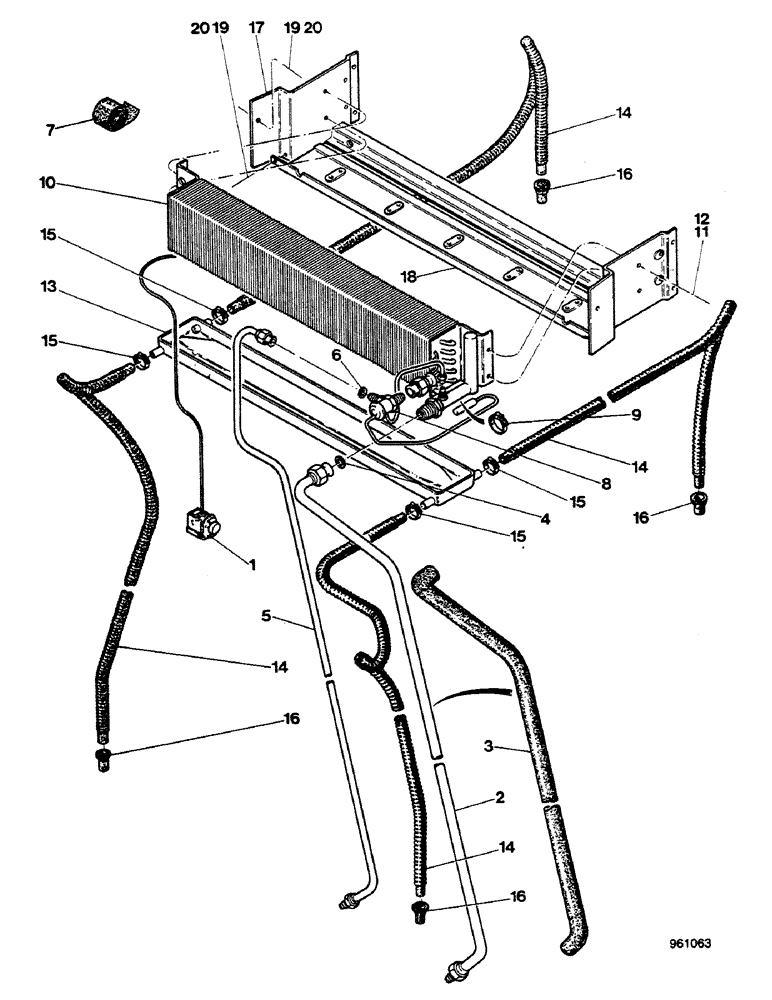

Запчасти Case 580G (490) - CAB - AIR CONDITIONER (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

SWITCH, See Figure 472

1шт.

2

F44732

TUBE

suction

1шт.

4

222-996

GASKET,3/4 Tube, Fl, Copper

copper

1шт.

5

F45180

TUBE

pressure

1шт.

6

222-993

GASKET,3/8 Tube, Fl, Copper

1шт.

7

A42902

SEALING STRIP

TAPE, Serial Range: cut-fit

2шт.

8

F64389

VALVE

1шт.

9

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

1шт.

10

F44712

CORE

1шт.

11

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

4шт.

13

F44731

PAN

1шт.

14

F44783

TUBE

4шт.

15

214-300

CLAMP

4шт.

16

F44790

VALVE

end

4шт.

17

F96821

BRACKET

1шт.

18

F96820

PANEL

BRACKET

1шт.

19

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

8шт.

20

193-6

LOCK WASHER,Ext Tooth, #10

8шт.
