Запчасти Case 580G (489E) - CAB - HEATER (09) - CHASSIS/ATTACHMENTS

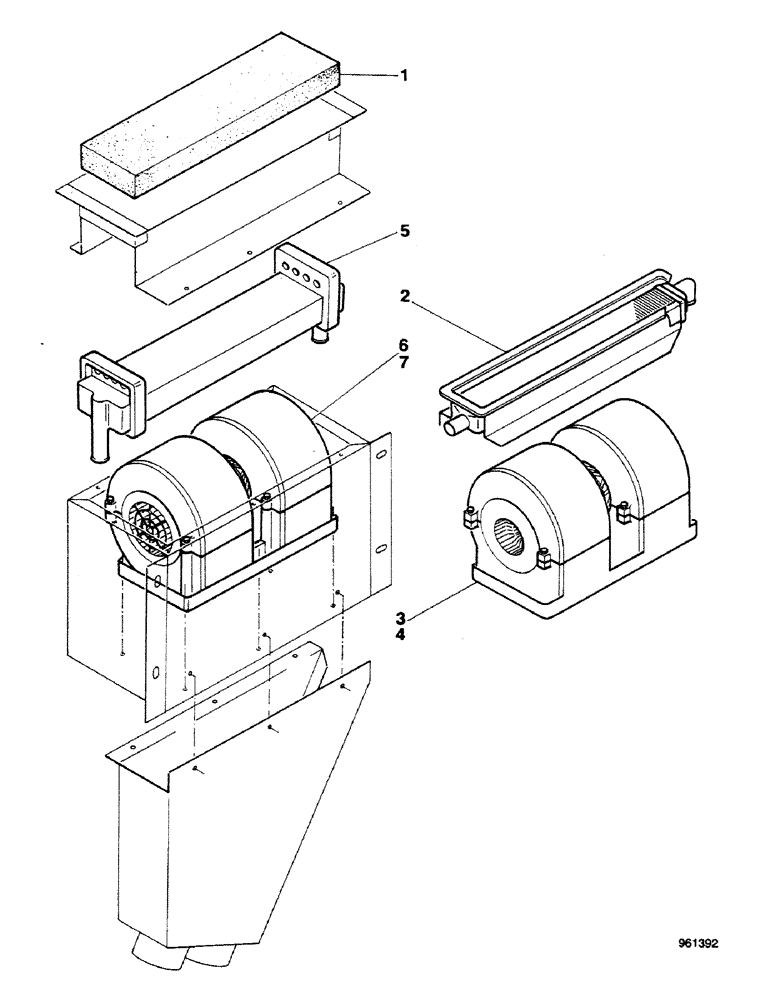

Схема запчастей Case 580G - (489E) - CAB - HEATER (09) - CHASSIS/ATTACHMENTS
5
2
4
1
7
6
3

Артикул

Название

Примечание

Количество

E45855

HEATER

ASSY, Includes: Ref. 1 - 7

1шт.

E46094

HEATER

ASSY, Includes: Ref. 1 - 7

1шт.

E46440

HEATER

ASSY, Includes: Ref. 1 - 7

1шт.

1

E46129

FILTER

FOAM

1шт.

2

E46124

RADIATOR

Used with E45855

1шт.

3

E46127

BLOWER ASSY.

air, Includes: Ref. 4, Used with E45855 and 46094

1шт.

4

E46272

MOTOR, ELECTRIC

12V

1шт.

5

E46125

RADIATOR

Used with E46094 and 46440

1шт.

6

E45899

BLOWER ASSY.

air, Includes: Ref. 7, Used with E46440

1шт.

7

E45923

MOTOR, ELECTRIC

14V

1шт.

Выбрано товаров: 10
