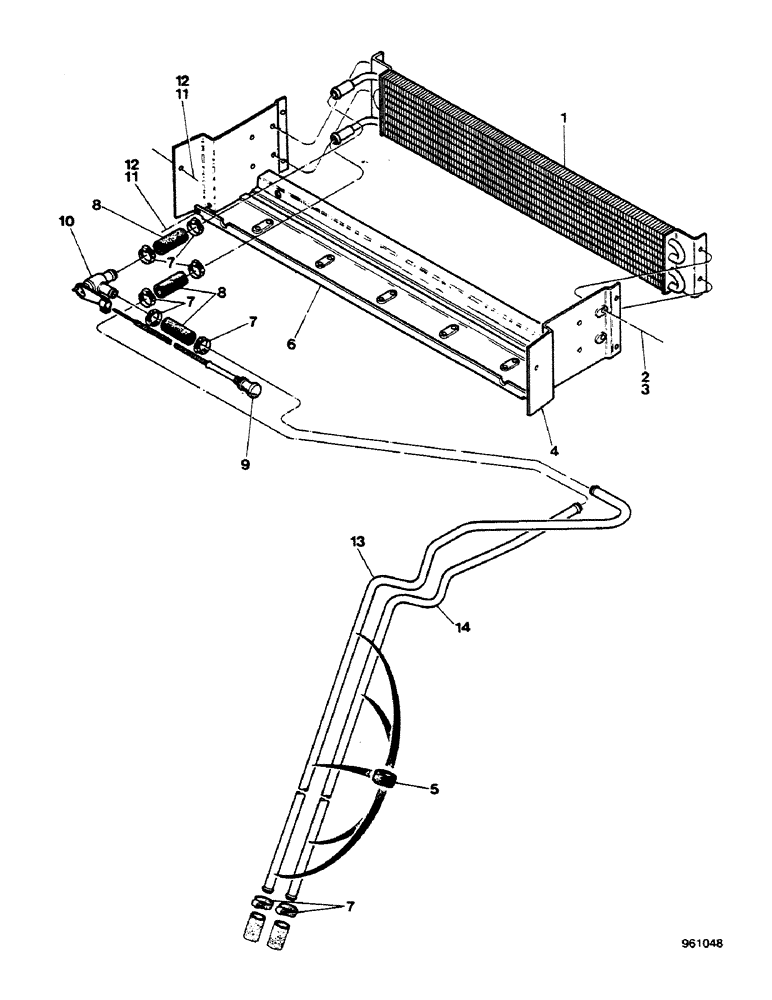

Запчасти Case 580G (486) - CAB - HEATER SEE FIGURE 488 UP TO NO. 3.808.596 (09) - CHASSIS/ATTACHMENTS

1

F45204

HEAT-EXCHANGER

CORE

1шт.

2

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

3

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

4шт.

4

F96821

BRACKET

1шт.

5

F64347

SEAL

bumper

5шт.

6

F96820

PANEL

1шт.

7

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

8шт.

8

F64008

HEATER HOSE,51.00 mm

3шт.

9

F44755

CABLE

1шт.

10

F63865

VALVE

1шт.

11

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

8шт.

12

193-6

LOCK WASHER,Ext Tooth, #10

8шт.

13

F44939

HEATER TUBE

1шт.

14

F44938

HEATER TUBE

1шт.
