Запчасти Case 580G (485A) - CAB - AIR BLOWER STARTING FROM NO. 3.804.795 UP TO NO. 3.808.596 (09) - CHASSIS/ATTACHMENTS

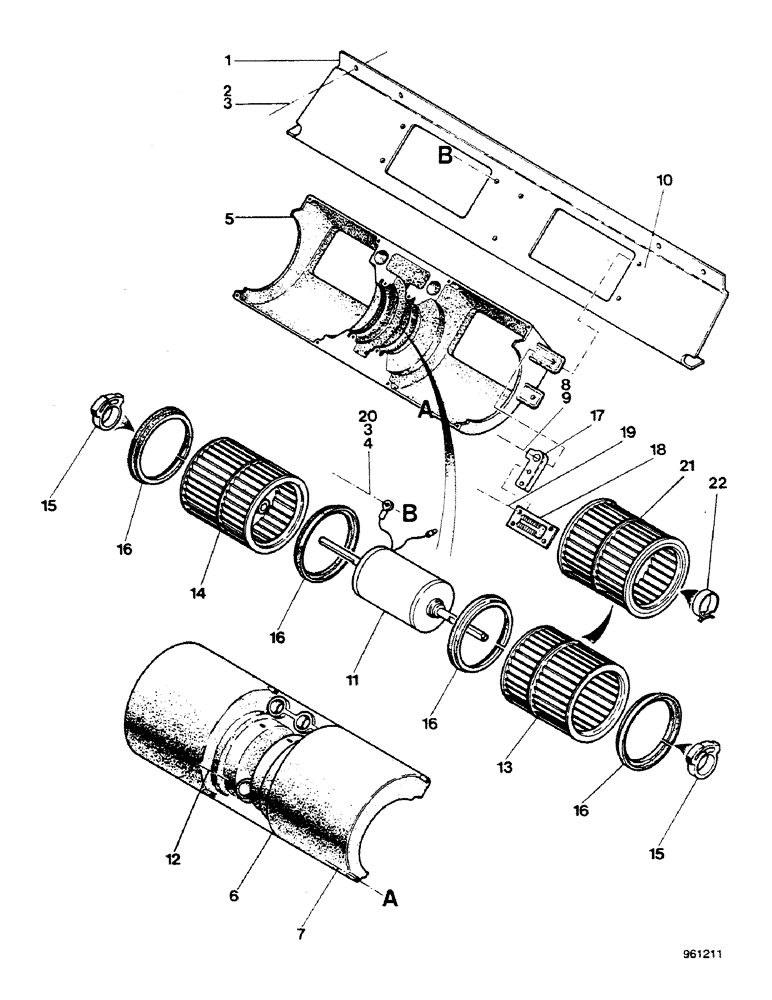

Схема запчастей Case 580G - (485A) - CAB - AIR BLOWER STARTING FROM NO. 3.804.795 UP TO NO. 3.808.596 (09) - CHASSIS/ATTACHMENTS
16
3
16
15
1
6
2
10
9
3
16
17
22
18
7
19
8
20
14
16
4
13
11
12
5
15
21

Артикул

Название

Примечание

Количество

1

F45208

BRACKET

1шт.

2

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

4шт.

3

193-6

LOCK WASHER,Ext Tooth, #10

7шт.

4

195-513

WASHER,#10

flat

3шт.

5

F64740

HOUSING

1шт.

6

F64741

HOUSING

1шт.

7

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

8шт.

8

163-13

SCREW,Hex, #10 - 24 x 3/4"

4шт.

9

195-513

WASHER,#10

flat

4шт.

10

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

4шт.

11

F96901

MOTOR, ELECTRIC

1шт.

12

187-1920

SELF-TAP SCREW,Cross Pan Hd, #8 x 1"

4шт.

13

F45020

BLOWER,Fan, RH

FAN RH, F64935

1шт.

14

F45021

BLOWER,Fan

FAN LH, F64935

1шт.

15

F64815

CLAMP

F64936

2шт.

16

F64739

RING

retainer

4шт.

17

F64742

BRACKET

1шт.

18

F44900

RESISTOR

1шт.

19

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

2шт.

20

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

3шт.

21

F64935

BLOWER,Fan

FAN

2шт.

22

F64936

CLAMP

2шт.

Выбрано товаров: 22
