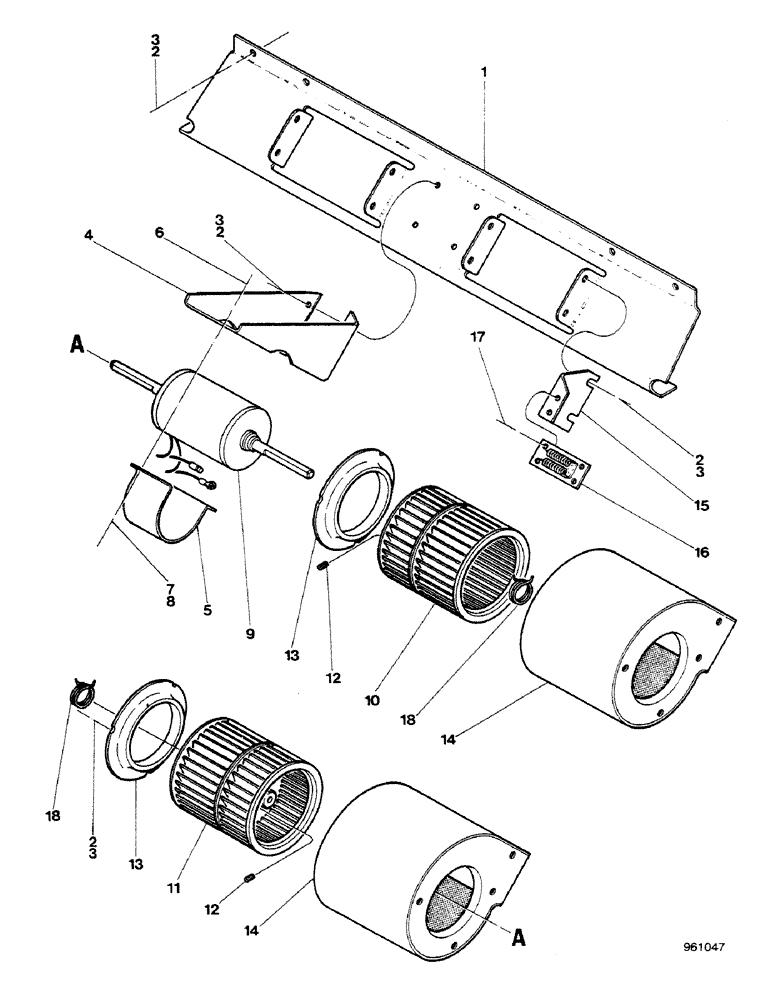

Запчасти Case 580G (484) - CAB - AIR BLOWER UP TO NO. 3.804.794 (09) - CHASSIS/ATTACHMENTS

1

F44730

BRACKET

SPARE PART

1шт.

2

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

20шт.

3

193-6

LOCK WASHER,Ext Tooth, #10

20шт.

4

F44729

BRACKET

1шт.

5

F44728

CLAMP

1шт.

6

182-550

SCREW,Cross Pan Hd, #10-24 x 1/2"

4шт.

7

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

4шт.

8

129-17

NUT,Hex, #10 - 24

4шт.

9

F96901

MOTOR, ELECTRIC

1шт.

10

REF

INSTRUCTION

FAN RH (See Figure 485A)

1шт.

11

REF

INSTRUCTION

FAN LH (See Figure 485A)

1шт.

12

82-45

SCREW

If used

2шт.

13

F63655

RETAINER

COVER

2шт.

14

F96724

HOUSING

2шт.

15

F41976

BRACKET

1шт.

16

F44900

RESISTOR

1шт.

17

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

2шт.

18

F44948

SPRING

CLAMP, If used

2шт.
