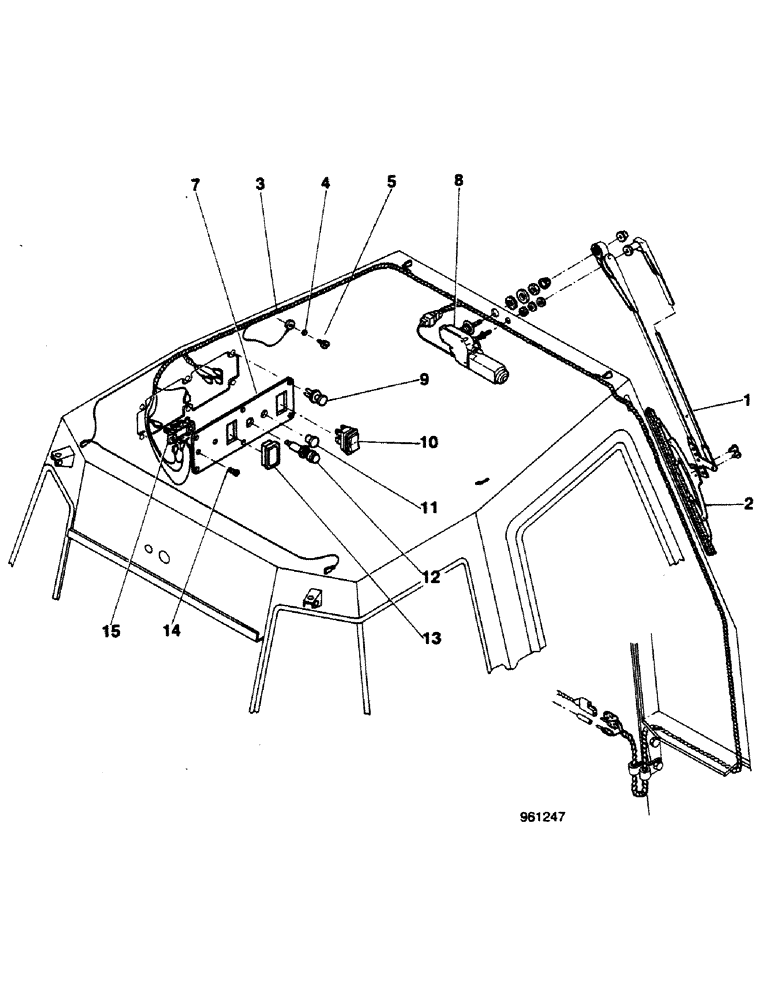

Запчасти Case 580G (475A) - CAB - FRONT WIND SHIELD WIPER STARTING FROM NO. 3.808.597 (09) - CHASSIS/ATTACHMENTS

1

E45507

ARM

1шт.

2

E45508

WIPER BLADE

BLADE, WIPER

1шт.

3

REF

INSTRUCTION

HARNESS (See figure 83A)

1шт.

4

193-6

LOCK WASHER,Ext Tooth, #10

1шт.

5

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

1шт.

7

E45477

PANEL

SPARE PART control

1шт.

8

E45498

1шт.

9

E45646

RIVET

6шт.

10

E45509

SWITCH

1шт.

11

353-403

PLUG,Dome, .437" hole, Nylon

1шт.

12

A22874

HOLDER

fuse

1шт.

12

223-10

FUSE,10 Amp, Type 3AG

10A

1шт.

13

E45510

PLUG

SPARE PART

1шт.

14

E15365

PLUG

BOLT

2шт.

15

E10153

BOARD

PLUG seat

1шт.
