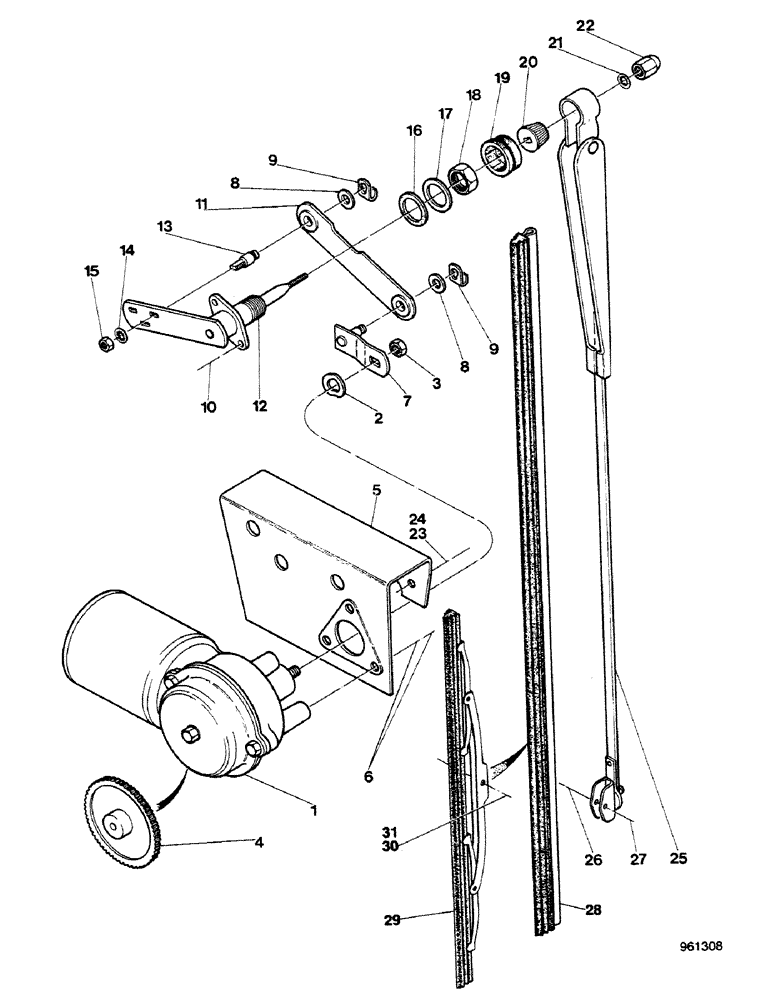

Запчасти Case 580G (474) - CAB - FRONT WINDSHIELD WIPER UP TO NO. 3.808.596 (09) - CHASSIS/ATTACHMENTS

F96898

WIPER

MOTOR with bracket, Includes: Ref. 1 - 22

1шт.

F96765

WIPER MOTOR

MOTOR, WIPER ASSY, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

MOTOR

1шт.

2

D71411

WASHER

1шт.

3

F44452

LOCK NUT

lock

1шт.

4

N6029

GEAR

1шт.

5

D72850

BRACKET

1шт.

6

D72849

SCREW

WASHER

3шт.

7

A36091

ARM

1шт.

8

A22431

WASHER

2шт.

9

D71414

CLIP

2шт.

10

F44456

SCREW,0.19" - 32 x 3 3/4"

2шт.

11

N9089

DRAG LINK

1шт.

N9090

WIPER BLADE

BLADE, WIPER SHAFT ASSY, Includes: Ref. 12 - 22

1шт.

12

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

13

D73642

PIN

1шт.

14

193-60

LOCK WASHER,Int Tooth, 1/4"

1шт.

15

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

16

N6749

WASHER

fiber

1шт.

17

N6750

WASHER

steel

1шт.

18

N6751

NUT

1шт.

19

N6752

CAP

1шт.

20

N6753

BLOCK DRIVER

1шт.

21

193-68

LOCK WASHER,Int Tooth, 3/8"

1шт.

22

N6754

NUT

1шт.

23

182-548

SCREW,Slotted Pan Hd, 1/4"-28 x 3/8"

2шт.

24

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

25

F44928

WIPER

ARM, Includes: Ref. 26 and 27

1шт.

26

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

1шт.

27

129-14

NUT,#5-40

1шт.

28

F43938

WIPER BLADE

BLADE, WIPER

1шт.

E44959 + 182-575 + 131-1409

1шт.

29

E44959

WIPER BLADE

BLADE, WIPER

1шт.

30

182-575

SCREW,Cross Pan Hd, #4-40 x 3/4"

1шт.

31

131-1409

LOCK NUT,#4-40, GB

1шт.
