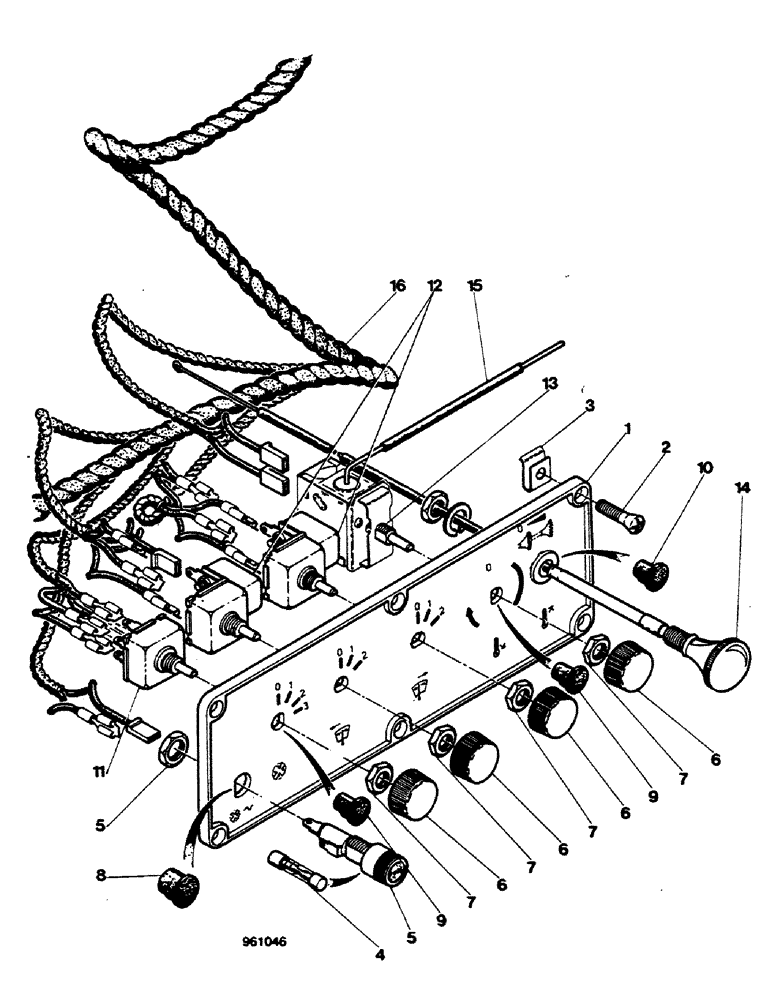

Запчасти Case 580G (472) - CAB - CONTROL PANEL AND WIRING UP TO NO. 3.808.596 (09) - CHASSIS/ATTACHMENTS

1

F45087

PANEL

1шт.

2

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

6шт.

3

131-861

SPRING NUT,Tinn, U, #10-24

6шт.

4

223-27

FUSE,20 Amp, Type 3AG

1шт.

5

A22874

HOLDER

fuse

1шт.

6

A42578

KNOB

1шт.

7

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

1шт.

8

353-404

PLUG,Dome, .500" hole, Nylon

If Used

1шт.

9

353-403

PLUG,Dome, .437" hole, Nylon

If used

1-2шт.

10

353-402

PLUG,Dome, .375" hole, Nylon

If used

1шт.

11

A42622

SWITCH

blower

1шт.

12

A42660

SWITCH

windshield wipers

2шт.

13

L73646

SWITCH

air conditioner

1шт.

14

F44755

CABLE

heat

1шт.

15

F44879

TUBE,0.12" ID x 0.17" OD x 20" L

1шт.

16

REF

INSTRUCTION

HARNESS (See Ref.17 - 18 Figure 82)

1шт.
