Запчасти Case 580G (470) - CAB - GLASSES (09) - CHASSIS/ATTACHMENTS

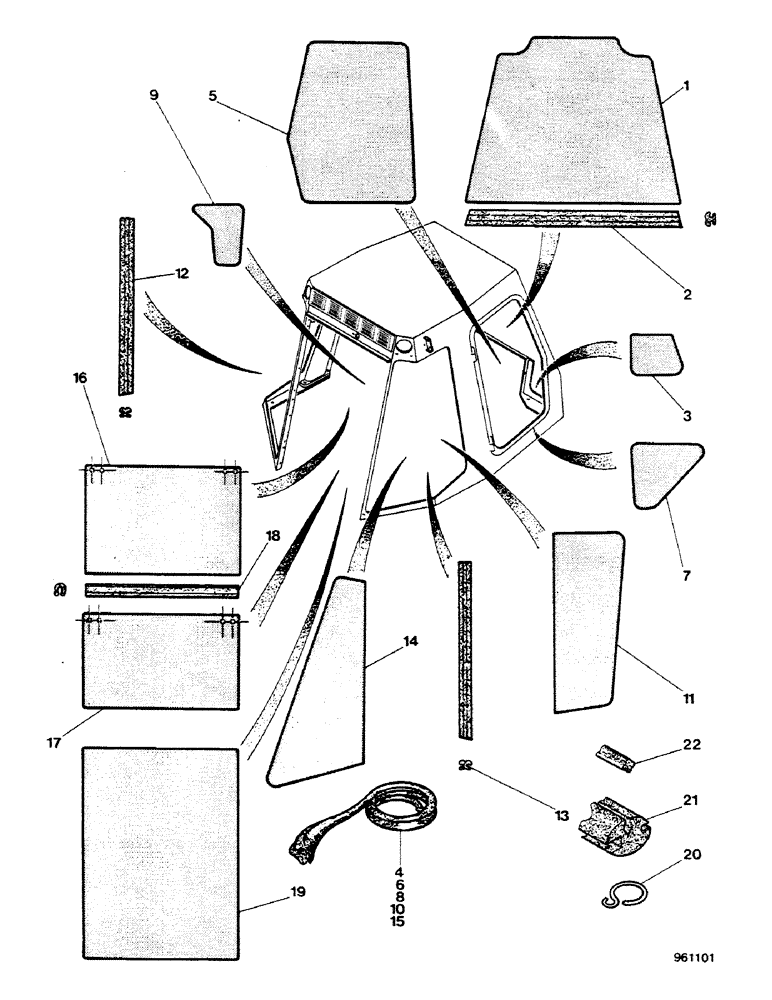

Схема запчастей Case 580G - (470) - CAB - GLASSES (09) - CHASSIS/ATTACHMENTS
18
6
20
2
15
11
5
17
9
8
7
1
22
19
16
21
13
4
3
14
12
10

Артикул

Название

Примечание

Количество

1

F45088

GLASS

not tinted

1шт.

1

F45099

GLASS

tinted, with fixed rear window, Serial Range: -3.808.596

1шт.

2

F44621

MOLDING

support

1шт.

3

F45089

GLASS

not tinted

2шт.

3

F44624

GLASS

tinted, with fixed rear window, Serial Range: -3.808.596

2шт.

4

F44760

GASKET

MOLDING, windshield

1шт.

5

F45093

GLASS

not tinted

2шт.

5

F44845

GLASS

tinted, with fixed rear window, Serial Range: -3.808.596

2шт.

6

F44846

GASKET

MOLDING

2шт.

7

D94464

GLASS

not tinted

1шт.

7

D90331

GLASS

tinted, with fixed rear window, Serial Range: -3.808.596

1шт.

8

F44763

GASKET

MOLDING

2шт.

9

F45095

GLASS

not tinted

1шт.

9

F44929

GLASS

tinted, with fixed rear window, Serial Range: -3.808.596

1шт.

10

F44930

GASKET

MOLDING

1шт.

11

F45090

GLASS

not tinted

2шт.

11

F44627

GLASS

tinted, with fixed rear window, Serial Range: -3.808.596

2шт.

12

F44667

RUBBER

SUPPORT RH

1шт.

13

F44668

SEAL

support LH

1шт.

14

F45094

GLASS

not tinted

2шт.

14

F44853

GLASS

tinted, with fixed rear window, Serial Range: -3.808.596

2шт.

15

F44761

GASKET

MOLDING

2шт.

16

F45092

GLASS

upper, not tinted

1шт.

16

F44629

GLASS

upper, tinted, with fixed rear window, Serial Range: -3.808.596

1шт.

17

F45091

GLASS

lower, not tinted

1шт.

17

F44630

GLASS

lower, tinted, with fixed rear window, Serial Range: -3.808.596

1шт.

18

F44710

SEAL

MOLDING

1шт.

19

E42868

GLASS

not tinted

1шт.

19

E42869

GLASS

SPARE PART tinted, with fixed rear window, Serial Range: -3.808.596

1шт.

20

E41781

SEAL

with fixed rear window

1шт.

21

E42879

GASKET

MOLDING, with fixed rear window

1шт.

22

E42880

LINING

plastic, with fixed rear window

1шт.

Выбрано товаров: 32
