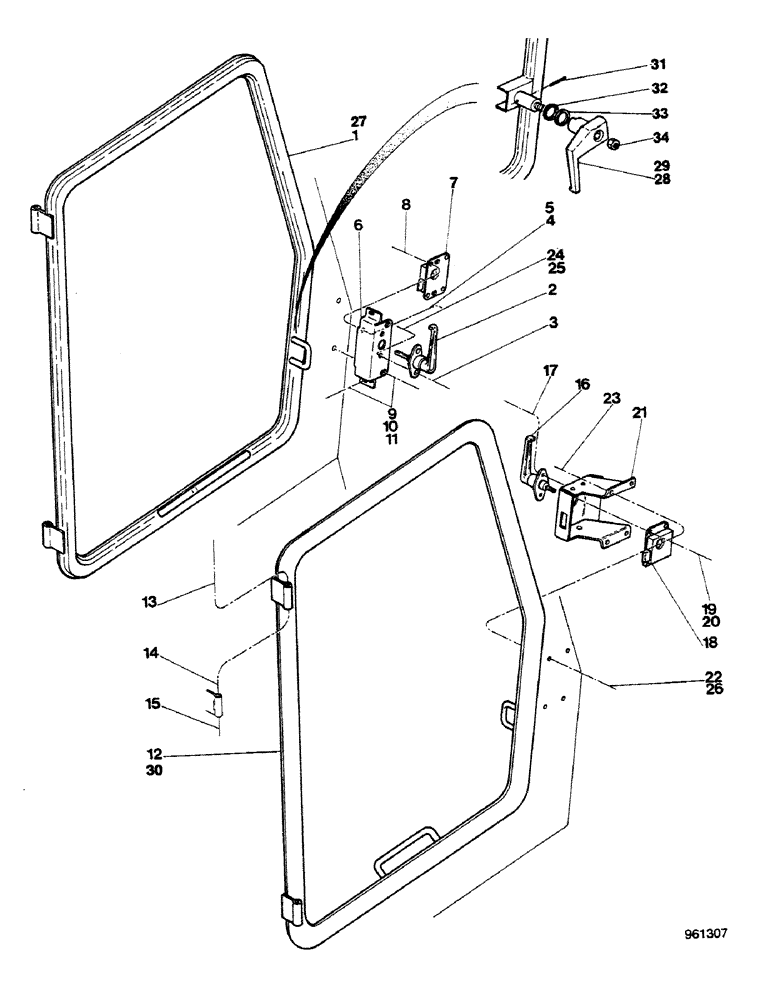

Запчасти Case 580G (468) - CAB - SIDE WINDOWS (09) - CHASSIS/ATTACHMENTS

1

F96713

WINDOW

FRAME, LH, Serial Range: -3.808.596

1шт.

2

F44693

HANDLE

LH, Serial Range: -3.808.596

1шт.

3

179-154

SCREW,Cross Oval Hd, #10 - 24 x 5/8"

, Serial Range: -3.808.596

2шт.

4

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

4шт.

5

7770

NUT,Hex, 1/4 - 20, Cl 5

, Serial Range: -3.808.596

4шт.

6

F44829

SUPPORT

LH, Serial Range: -3.808.596

1шт.

7

F45167

LATCH

LH, Serial Range: -3.808.596

1шт.

8

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

, Serial Range: -3.808.596

4шт.

9

F45239

SCREW

, Serial Range: -3.808.596

4шт.

10

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

4шт.

11

195-513

WASHER,#10

flat, Serial Range: -3.808.596

4шт.

12

F96712

FRAME

RH, Serial Range: -3.808.596

1шт.

13

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

4шт.

14

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

thrust

4шт.

15

131-203

LOCK NUT,3/8"-16, GB, LH

4шт.

16

F44693

HANDLE

RH, Serial Range: -3.808.596

1шт.

17

179-153

SCREW,Cross Oval Hd, #10 - 24 x 1/2"

, Serial Range: -3.808.596

2шт.

18

F45164

LATCH

RH, Serial Range: -3.808.596

1шт.

19

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

(10.32 x 1/2NF), Serial Range: -3.808.596

4шт.

19

182-550

SCREW,Cross Pan Hd, #10-24 x 1/2"

(10.24 x 1/2NC), If used, Serial Range: -3.808.596

4шт.

20

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

4шт.

21

F96825

HOUSING

, Serial Range: -3.808.596

1шт.

22

182-550

SCREW,Cross Pan Hd, #10-24 x 1/2"

, Serial Range: -3.808.596

4шт.

23

86625057

NUT,#10-24, GB

, Serial Range: -3.808.596

4шт.

24

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

2шт.

25

129-17

NUT,Hex, #10 - 24

, Serial Range: -3.808.596

2шт.

26

195-513

WASHER,#10

flat, Serial Range: -3.808.596

4шт.

27

E45502

FRAME

LH, Start Serial: 3.808.597

1шт.

28

E45410

HANDLE

LH, Start Serial: 3.808.597

1шт.

29

E45411

HANDLE

RH, Start Serial: 3.808.597

1шт.

30

E45503

FRAME

RH, Start Serial: 3.808.597

1шт.

31

138-57

LOCK PIN,1/8" x 3/4", Slotted

2шт.

32

E45412

WASHER

rubber, Start Serial: 3.808.597

2шт.

33

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

, Start Serial: 3.808.597

2шт.

34

825-1106

NUT,Hex, M6, Cl 8

, Start Serial: 3.808.597

2шт.
