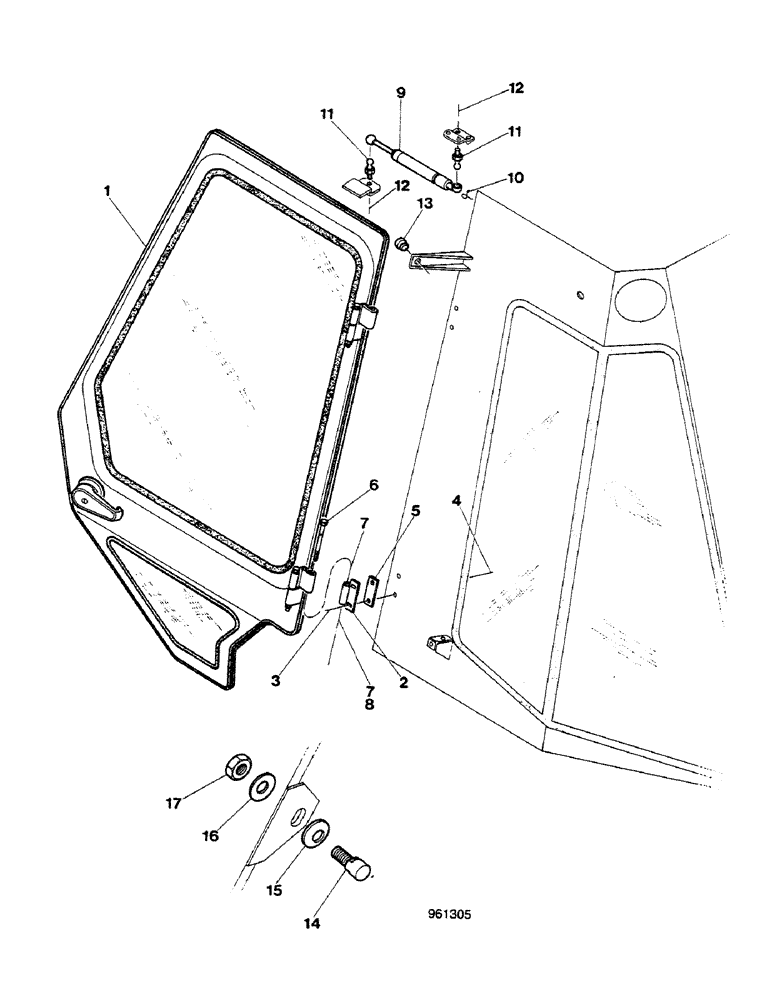

Запчасти Case 580G (464) - CAB - DOOR MOUNTING (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

DOOR, See Figure 462

1шт.

2

F44868

HINGE

2шт.

3

111-255

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5

4шт.

4

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

4шт.

5

E45172

SPACER

2шт.

6

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

2шт.

7

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

thrust

4шт.

8

131-203

LOCK NUT,3/8"-16, GB, LH

2шт.

9

F44881

CYLINDER ASSY.

1шт.

E45902 + E46491 (2) + E46492 (2) + E45161 (2)

1шт.

9

E45902

GAS STRUT

CYLINDER

1шт.

10

F44883

CLIP,DIN 71805 - S10

2шт.

10

E46492

CLIP

2шт.

11

F44882

BALL

STUD 5/16"NC Dia

2шт.

11

E46491

BALL JOINT

STUD "0" M8

2шт.

12

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

2шт.

12

E45161

NUT

"0" M8

2шт.

13

L60224

BUMPER

1шт.

14

F45073

PIN

striker

1шт.

15

195-2029

WASHER,7/16" x 1 1/4" x .134"

flat

2шт.

16

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

1шт.

16

195-2029

WASHER,7/16" x 1 1/4" x .134"

flat

1шт.

17

131-1129

LOCK NUT,7/16"-14, GA

1шт.
