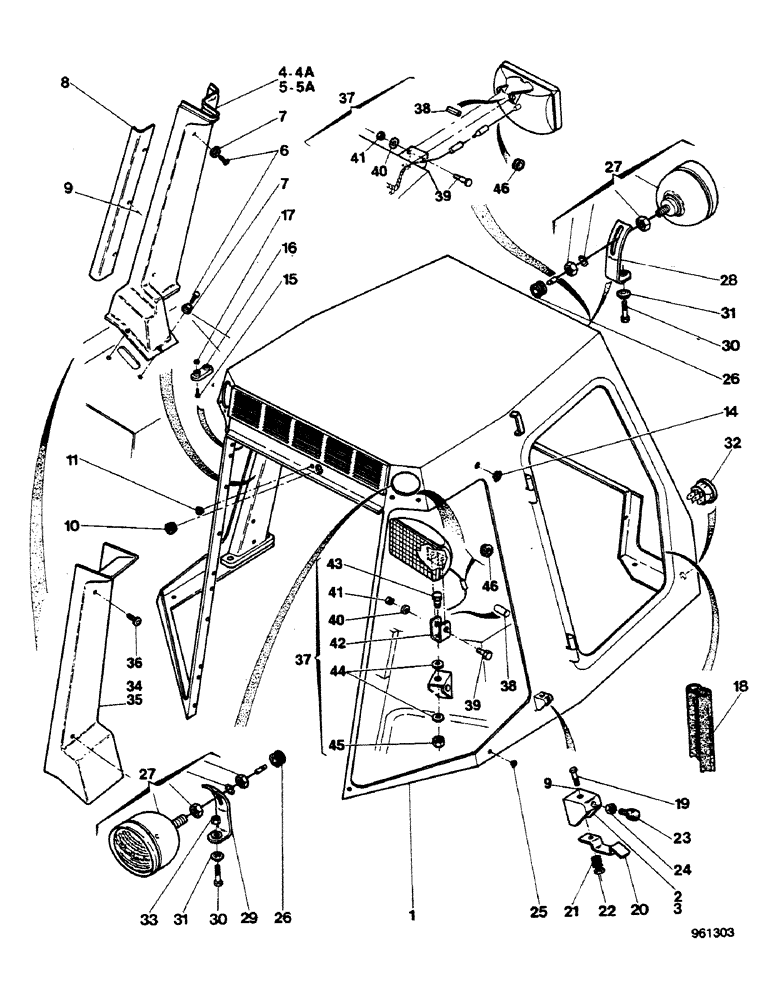

Запчасти Case 580G (460) - CAB - FRAME AND LAMPS (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

FRAME ASSY, Includes: Ref. 2 and 3

1шт.

2

F97010

BRACKET

RH

1шт.

3

F97011

BRACKET

LH

1шт.

4

D90190

COVER

RH, Serial Range: -3.804.820

1шт.

4a

D123200

COVER

RH, Serial Range: 3.804.821-3.808.596

1шт.

5

D90191

COVER

LH, Serial Range: -3.804.820

1шт.

5a

D123201

PANEL

cover - LH, Serial Range: 3.804.821-3.808.596

1шт.

6

179-160

SCREW,Cross Oval Hd, 1/4" - 20 x 3/4"

, Serial Range: -3.808.596

8шт.

7

D91156

WASHER

, Serial Range: -3.808.596

8шт.

8

F44766

COVER

, Serial Range: -3.808.596

2шт.

9

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

, Serial Range: -3.808.596

2шт.

9

195-518

WASHER,1/4", SAE

4-2шт.

10

R46507

PLUG

With rear windshield wiper, Serial Range: -3.808.596

1шт.

10

353-422

PLUG,Dome, 1.250" hole, Nylon

With rear windshield wiper, Start Serial: 3.808.597

1шт.

11

205-7

PLUG

With rear windshield wiper, Serial Range: -3.808.596

1шт.

11

353-406

PLUG,Dome, .625" hole, Nylon

With rear windshield wiper, Start Serial: 3.808.597

1шт.

14

353-408

PLUG,Dome, .750" hole, Nylon

2шт.

15

182-548

SCREW,Slotted Pan Hd, 1/4"-28 x 3/8"

With rear windshield wiper

3шт.

16

129-723

RETAINER

With rear windshield wiper

3шт.

17

131-1280

JAM NUT,Jam, 1/4"-20

With rear windshield wiper

3шт.

18

F44775

GASKET

E46364

1шт.

18

E46364

LINING

1шт.

19

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

20

F42772

LATCH

2шт.

21

D36669

SPRING

2шт.

22

131-1180

LOCK NUT,1/4"-20, GA

2шт.

23

F44935

BUMPER

2шт.

24

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

25

353-402

PLUG,Dome, .375" hole, Nylon

2шт.

26

353-700

BUSHING

GROMMET

4шт.

27

REF

INSTRUCTION

LAMP (See Figure 82)

4шт.

28

D94064

RETAINER

SPARE PART BRACKET, Serial Range: -3.806.572

1шт.

29

F96782

BRACKET

, Serial Range: -3.806.572

1шт.

30

113-152

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

, Serial Range: -3.806.572

4шт.

31

F42778

WASHER

, Serial Range: -3.806.572

4шт.

32

REF

INSTRUCTION

CONNECTOR (See Figure 82)

2шт.

33

9635082

NUT,5/16" - 18, Gr 5

, Serial Range: -3.806.572

4шт.

34

D126948

MOLDING

COVER RH, Start Serial: 3.808.597

1шт.

34

D126946

COVER

RH, For 580 GT

1шт.

35

D126949

GUARD

cover LH, Start Serial: 3.808.597

1шт.

35

D126947

COVER

LH, For 580 GT

1шт.

36

E45490

BOLT

Trimount, If used, Start Serial: 3.808.597

4шт.

36

182-241

SCREW,Sl Pan Hd, 5/16" - 18 x 5/8"

4шт.

37

REF

INSTRUCTION

LAMP (See Figure 82)

4шт.

38

D125869

SPACER

, Start Serial: 3.806.573

4шт.

39

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

, Start Serial: 3.806.573

4шт.

40

193-57

LOCK WASHER,Ext Tooth, 1/4"

, Start Serial: 3.806.573

4шт.

41

7770

NUT,Hex, 1/4 - 20, Cl 5

, Start Serial: 3.806.573

4шт.

42

D126240

BRACKET

SPARE PART, Start Serial: 3.806.573

2шт.

43

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

, Start Serial: 3.806.573

2шт.

44

193-72

LOCK WASHER

, Start Serial: 3.806.573

4шт.

45

87016560

JAM NUT,Jam, 3/8"-16, G5

, Start Serial: 3.806.573

2шт.

46

353-700

BUSHING

GROMMET, If used, Start Serial: 3.806.573

4шт.
