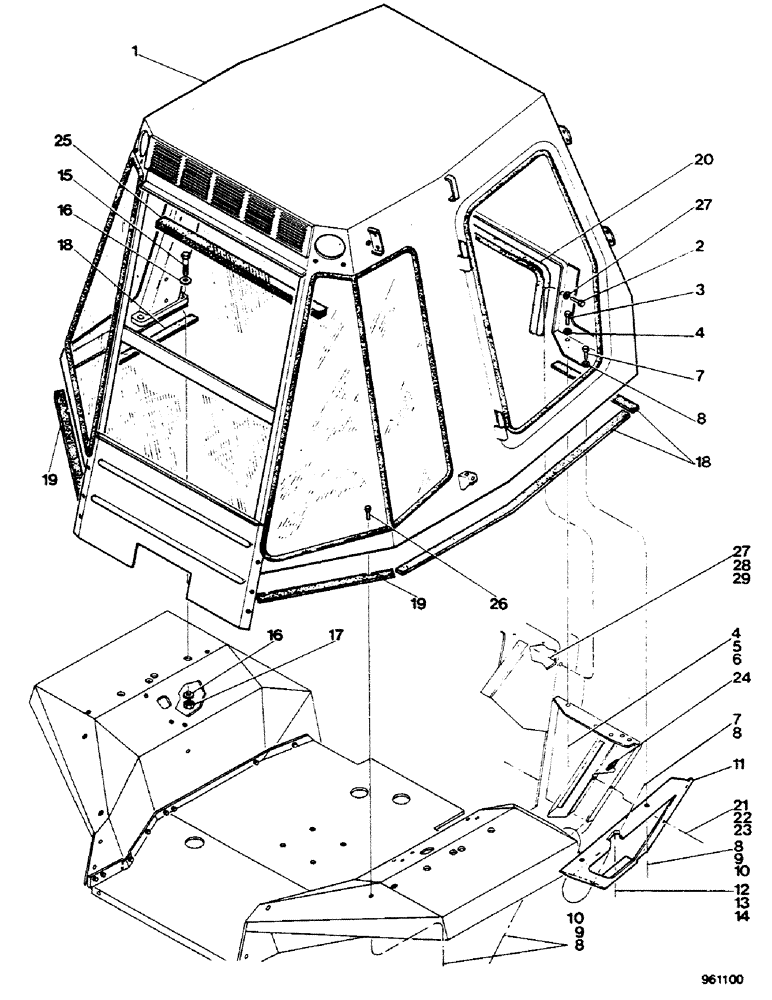

Запчасти Case 580G (458) - ROPS CAB AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CAB, See Figure 460 - 490

1шт.

2

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

If used

1-2шт.

3

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

4

195-104

WASHER,3/8"

flat

8шт.

5

192-21

LOCK WASHER,3/8"

4шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

4шт.

7

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5шт.

8

195-103

WASHER,5/16"

flat

25шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

11шт.

10

9635082

NUT,5/16" - 18, Gr 5

11шт.

11

D90333

PANEL

SPARE PART

1шт.

12

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

13

192-21

LOCK WASHER,3/8"

1шт.

14

195-104

WASHER,3/8"

flat

1шт.

15

113-774

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

4шт.

16

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

8шт.

17

129-138

NUT,3/4"-10, G8

4шт.

18

D90936

BAND

rubber

1шт.

19

D90935

SEALING STRIP

rubber

2шт.

20

F44780

SEAL

cowl, E46363

1шт.

20

E46363

LINING

SEAL cowl

1шт.

21

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

22

92-5

LOCK WASHER,5/16"

3шт.

23

195-103

WASHER,5/16"

flat

3шт.

24

131-637

SPRING NUT,Ret, J, 5/16"-18

If used

3шт.

24

9635082

NUT,5/16" - 18, Gr 5

3шт.

25

F44812

SEAL

Not of stationary window

1шт.

26

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

6шт.

27

195-104

WASHER,3/8"

flat, If used

4шт.

28

192-21

LOCK WASHER,3/8"

If used

2шт.

29

129103

ARM

SPARE PART NUT, If used

2шт.
