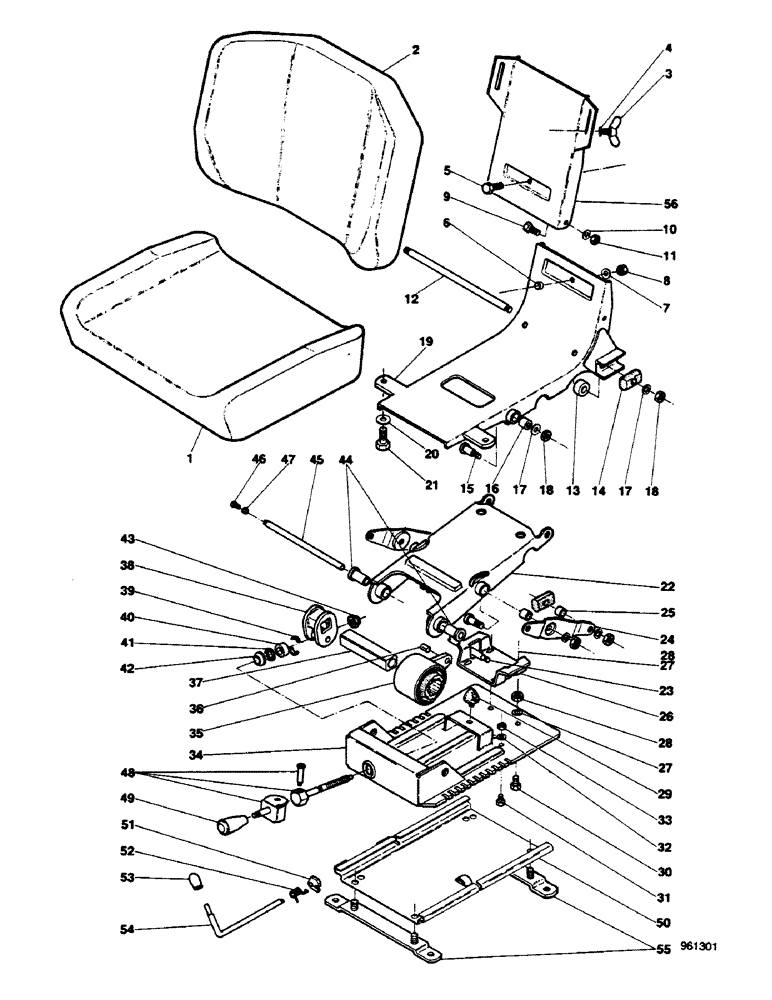

Запчасти Case 580G (457A) - SEAT (SIFRA) UP TO NO. 3.941.044 (09) - CHASSIS/ATTACHMENTS

E44731

SEAT

ASSY, Fabric, Includes: Ref. 1 - 56

1шт.

E44783

SEAT

ASSY, Vinyl, Includes: Ref. 1 - 56

1шт.

E45265

SEAT

ASSY, Fabric, With protective cover, Includes: Ref. 1 - 56

1шт.

1

E44801

CUSHION, SEAT

Fabric

1шт.

1

E44803

CUSHION, SEAT

Vinyl

1шт.

2

E44802

BACKREST

Fabric

1шт.

2

E44804

BACKREST

SPARE PART Vinyl

1шт.

3

E42395

NUT

2шт.

4

E42394

WASHER

2шт.

5

E45112

SCREW

cap

1шт.

6

E42389

SPACER

1шт.

7

E42394

WASHER

1шт.

8

825-1108

NUT,Hex, M8, Cl 8

1шт.

9

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

cap

2шт.

10

892-1108

LOCK WASHER,M8

2шт.

11

825-1108

NUT,Hex, M8, Cl 8

2шт.

12

E42418

AXLE PIN

1шт.

13

E42411

SPACER

2шт.

14

E42422

SHOE

4шт.

15

E42414

PIN

AXLE

4шт.

16

E42415

BUSHING

4шт.

17

E42416

WASHER

4шт.

18

825-1110

NUT,M10, Cl 8

4шт.

19

E42397

SEAT

SPARE PART FRAME lower

1шт.

20

E42394

WASHER

2шт.

21

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

cap

2шт.

22

E42413

ROD

SPARE PART

1шт.

23

E42419

SHAFT

lower

1шт.

24

E42410

ROD

2шт.

25

E42420

SPACER

2шт.

26

E42421

GUIDE

BRACKET

1шт.

27

E42394

WASHER

4шт.

28

825-1108

NUT,Hex, M8, Cl 8

4шт.

29

E40857

RUBBER

STOP

1шт.

30

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

31

E42423

SCREW

cap

2шт.

32

E42394

WASHER

2шт.

33

825-1108

NUT,Hex, M8, Cl 8

2шт.

34

E42398

PLATE

SPARE PART base

1шт.

35

E40848

CYLINDER

knuckle

1шт.

36

E42409

PIN

1шт.

37

E42408

SHAFT

1шт.

38

E42405

YOKE

UNIVERSAL JOINT YOKE

1шт.

39

E42404

BUSHING

half

1шт.

40

E42403

BUSHING

1шт.

41

E42402

BEARING, THRUST

1шт.

42

E42401

BALL

LINK

1шт.

43

E42406

NUT

1шт.

44

E40849

BUSHING

2шт.

45

E42417

SHAFT

1шт.

46

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

1шт.

47

892-1110

LOCK WASHER,M10

1шт.

48

E42400

ROD, ADJUSTMENT

SPARE PART tie

1шт.

49

E42426

KNOB

1шт.

50

E42424

PLATE ASSY.

SLIDE ASSY, Includes: Ref. 51 - 54

1шт.

51

E42434

CATCH

1шт.

52

E42433

SPRING

1шт.

53

E42435

KNOB

SPARE PART

1шт.

54

E42432

LEVER

1шт.

55

E45300

BRACKET

2шт.

E45300 + 814-8016 (2)

1шт.

56

E42383

FUNNEL

FRAME upper

1шт.

E45480

COVER

SPARE PART Not shown, Used with E45265 only

1шт.

E45481

BRACKET

top rear, Not shown, Used with E45265 only

2шт.

E45482

BRACKET

bottom front, Not shown, Used with E45265 only

2шт.

E45483

DRAG LINK

Not shown, Used with E45265 only

2шт.

E45484

BRACKET

top front RH, Not shown, Used with E45265 only

1шт.

E45485

BRACKET

top front LH, Not shown, Used with E45265 only

1шт.

E45486

SUPPORT

SPARE PART bottom rear RH, Not shown, Used with E45265 only

1шт.

E45487

BRACKET

bottom rear LH, Not shown, Used with E45265 only

1шт.

E45488

DOOR COVER

STUD Trimount, Not shown, Used with E45265 only

11шт.

814-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

Not shown, Used with E45265 only

6шт.

E15364

WASHER

lock tooth, Not shown, Used with E45265 only

6шт.

825-1106

NUT,Hex, M6, Cl 8

Not shown, Used with E45265 only

6шт.
