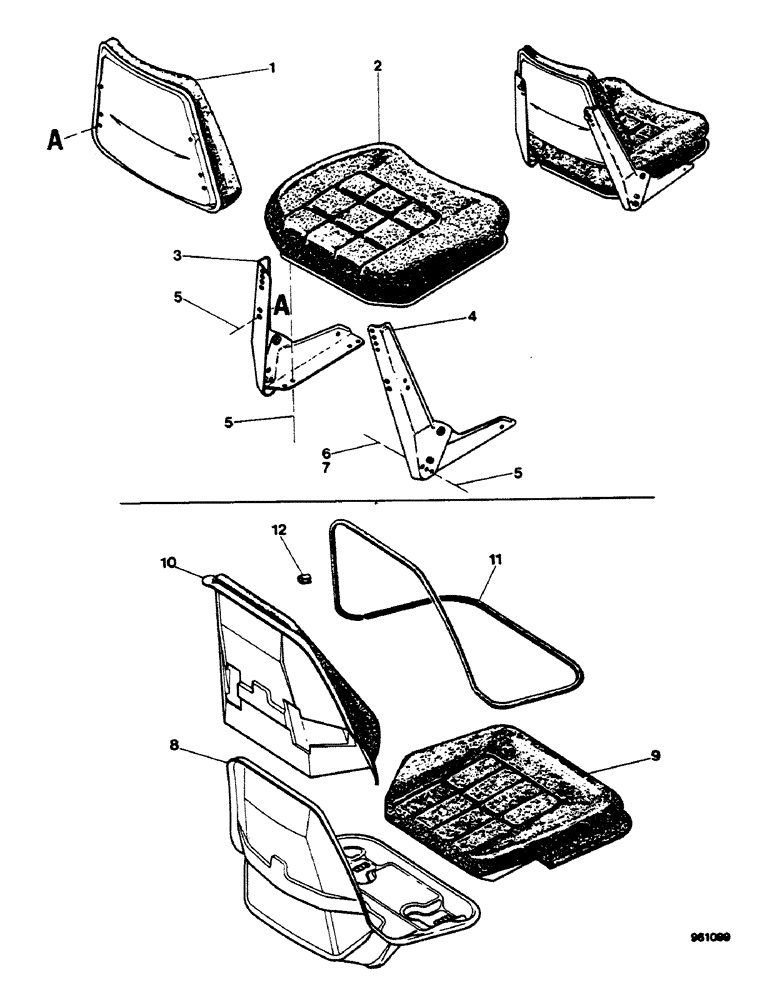

Запчасти Case 580G (452) - SEAT (MILSCO) (09) - CHASSIS/ATTACHMENTS

D81519

SEAT

ASSY, D120255, Includes: Ref. 1 - 7

1шт.

1

D56884

BACKREST

1шт.

2

D56883

SEAT

CUSHION

1шт.

3

D56885

RAIL ASSY.

FRAME

1шт.

4

D56886

RAIL ASSY.

FRAME

1шт.

5

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

10шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

7

9635082

NUT,5/16" - 18, Gr 5

2шт.

D120255

SEAT

ASSY, D123196, Includes: Ref. 8 - 12, Serial Range: -3.934.169

1шт.

8

NSS

NOT SOLD SEPARAT

SHELL

1шт.

9

N7675

CUSHION

Includes N7802

1шт.

10

N7674

BACKREST

Includes N7802

1шт.

11

NSS

NOT SOLD SEPARAT

RETAINER

1шт.

12

NSS

NOT SOLD SEPARAT

CLIP

1шт.

N7802

CLIP

KIT, N7802

1шт.

D123196

SEAT ASSY.

Includes: Ref. 8 - 12, Start Serial: 3.934.170

1шт.

8

NSS

NOT SOLD SEPARAT

SHELL

1шт.

9

N8462

CUSHION

Includes N7802

1шт.

10

N8461

CUSHION

BACKREST, Includes N7802

1шт.

11

NSS

NOT SOLD SEPARAT

RETAINER

1шт.

12

NSS

NOT SOLD SEPARAT

CLIP, N7802

1шт.

N7802

CLIP

KIT

1шт.
