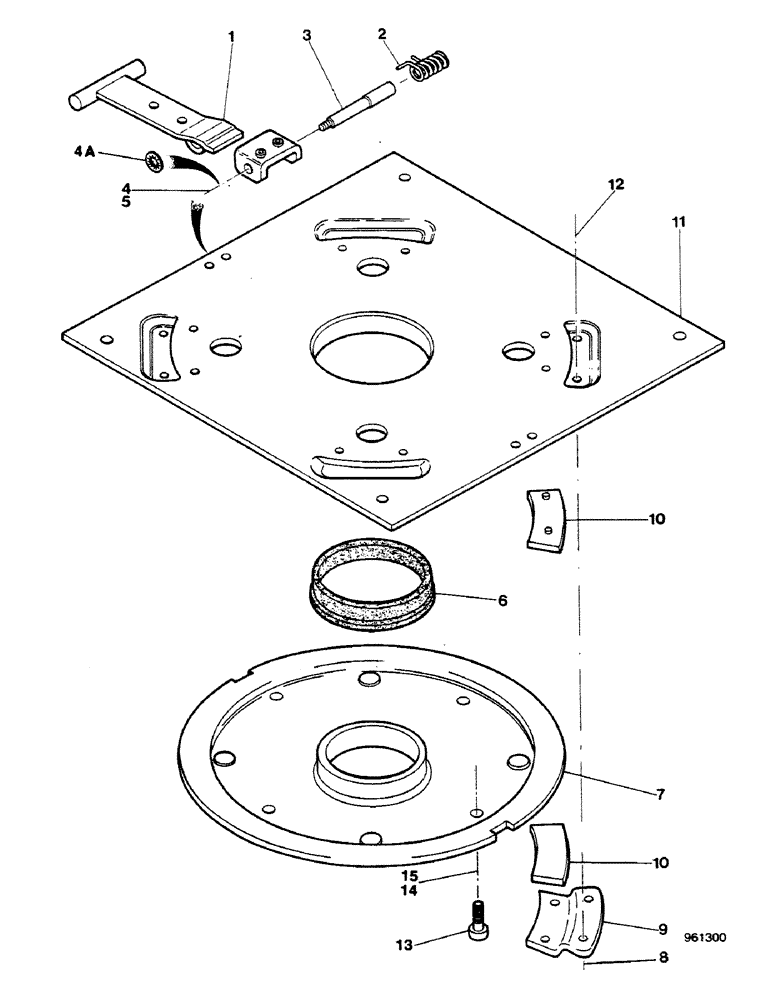

Запчасти Case 580G (450) - SEAT SWIVEL PLATE (09) - CHASSIS/ATTACHMENTS

D120491

PLATE

swivel, E46343, For : Bostrom, Includes: Ref. 1 - 12

1шт.

1

E42120

LEVER

1шт.

2

E42122

SPRING

1шт.

3

E42121

PIN

1шт.

4

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

5

825-1105

NUT,M5, Cl 8

1шт.

6

E42117

BUSHING

1шт.

7

E42116

DISC

E46343

1шт.

8

814-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

8шт.

9

E42119

SUPPORT

4шт.

10

E42118

PAD

8шт.

11

NSS

NOT SOLD SEPARAT

PLATE

1шт.

12

825-1106

NUT,Hex, M6, Cl 8

8шт.

E44844

PLATE

SWIVEL ASSY, E46249, For : Sifra, Includes: Ref. 1 - 15

1шт.

1

E42120

LEVER

(Tab = 14mm)

1шт.

2

E42122

SPRING

1шт.

3

E42121

PIN

1шт.

4a

E45120

RING

retaining

1шт.

6

E42117

BUSHING

1шт.

7

E44843

PLATE

E46249

1шт.

8

814-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

8шт.

9

E42119

SUPPORT

4шт.

10

E42118

PAD

8шт.

11

NSS

NOT SOLD SEPARAT

PLATE

1шт.

12

825-1106

NUT,Hex, M6, Cl 8

8шт.

13

E44770

SCREW

1шт.

14

E44841

WASHER

If used

1шт.

15

E44769

NUT

1шт.

E46249

PLATE

SPARE PART SWIVEL ASSY, For : Sifra, Includes: Ref. 1 - 15

1шт.

E46343

PLATE

SWIVEL ASSY, For : Bostrom, Includes: Ref. 1 - 15

1шт.

1

E46407

LEVER

(Tab = 20mm)

1шт.

2

E42122

SPRING

1шт.

3

E42121

PIN

1шт.

4a

E45120

RING

retaining

1шт.

6

E42117

BUSHING

1шт.

7

E46406

PLATE ASSY.

1шт.

8

814-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

8шт.

9

E42119

SUPPORT

4шт.

10

E42118

PAD

8шт.

11

NSS

NOT SOLD SEPARAT

PLATE

1шт.

12

825-1106

NUT,Hex, M6, Cl 8

8шт.

13

E44770

SCREW

1шт.

15

E44769

NUT

lock

1шт.
