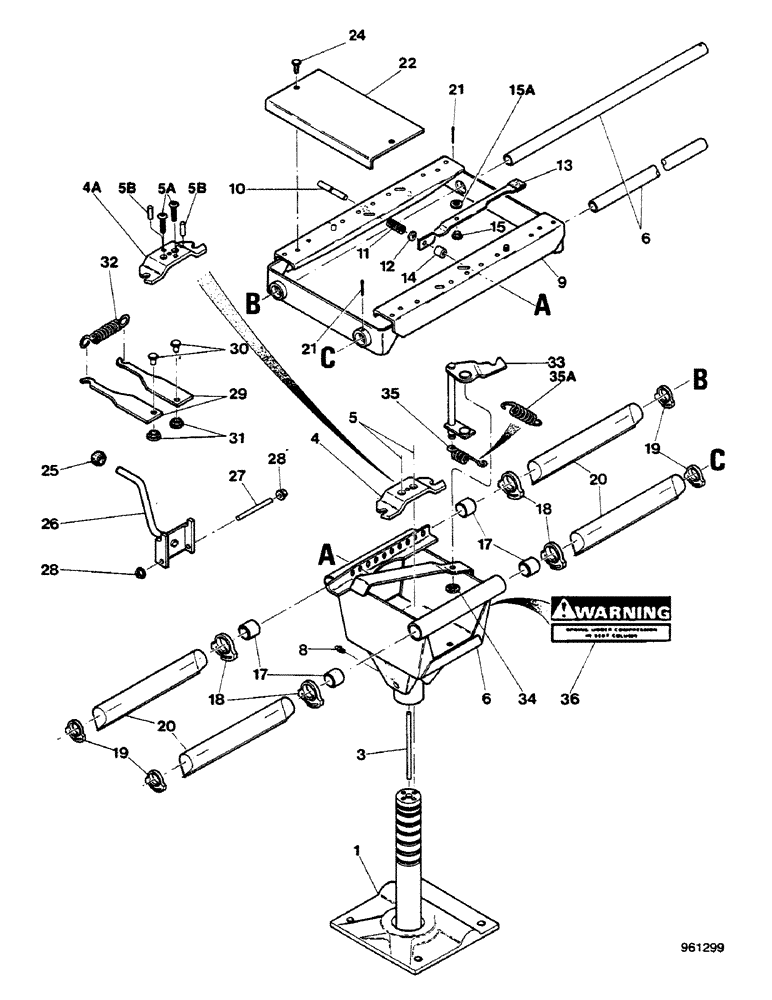

Запчасти Case 580G (448) - SEAT SUPPORT (09) - CHASSIS/ATTACHMENTS

D124103

PEDESTAL

SUPPORT ASSY, Includes: Ref. 1 - 36

1шт.

1

N8385

BASE

1шт.

3

N8340

SHAFT

1шт.

4

NSS

NOT SOLD SEPARAT

LATCH

1шт.

N8339 + (2) 164-407 + (2) 135-84

1шт.

4a

N8339

LATCH

1шт.

5

N6942

SCREW

2шт.

5a

164-407

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 1/2"

2шт.

5b

135-84

GROOVED PIN,5/16" x 3/4", Type A

2шт.

6

N6968

BRACKET

RISER, Drill 2 holes

1шт.

8

219-16

LUBE NIPPLE,5/16" NPTF

1шт.

NSS

NOT SOLD SEPARAT

SLIDE ASSY, Includes: Ref. 9 - 15A

1шт.

9

N6959

SLIDE

1шт.

10

N6958

PIN

1шт.

11

N8342

SPRING

1шт.

12

A27795

RING

1шт.

13

N13687

GRIP

1шт.

14

N6957

SPACER

1шт.

15

131-433

PUSH-ON NUT,Push, 1/4"

1шт.

15a

195-102

WASHER,1/4"

1шт.

16

N6943

TUBE,1.006" OD x 21.1" L

2шт.

17

N6950

TUBE,1.015" ID x 1.1905" OD x 1"

4шт.

18

N14105

CLAMP

4шт.

19

N14105

CLAMP

4шт.

20

N6967

BELLOWS

4шт.

21

132-52

COTTER PIN,1/8" x 1 1/2"

2шт.

22

N6869

GUIDE

BRACKET

1шт.

24

N6944

CLIP

2шт.

N6934

TUBE

KIT, Includes: Ref. 25 - 28

1шт.

25

NSS

NOT SOLD SEPARAT

KNOB

1шт.

26

NSS

NOT SOLD SEPARAT

LEVER

1шт.

27

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

28

131-434

LOCK NUT,Push, 5/16"

2шт.

29

N6963

LATCH

2шт.

30

N6964

PIN,9.53mm OD x 19.05mm L

2шт.

31

131-435

PUSH-ON NUT,Push, 3/8"

2шт.

32

N6970

CATCH

SPRING

1шт.

33

N6951

LEVER

control

1шт.

34

131-435

PUSH-ON NUT,Push, 3/8"

1шт.

35

N6949

SPRING

(3.15")

1шт.

35a

N8341

SPRING

(2.36")

1шт.

36

321-3055

DECAL

1шт.
