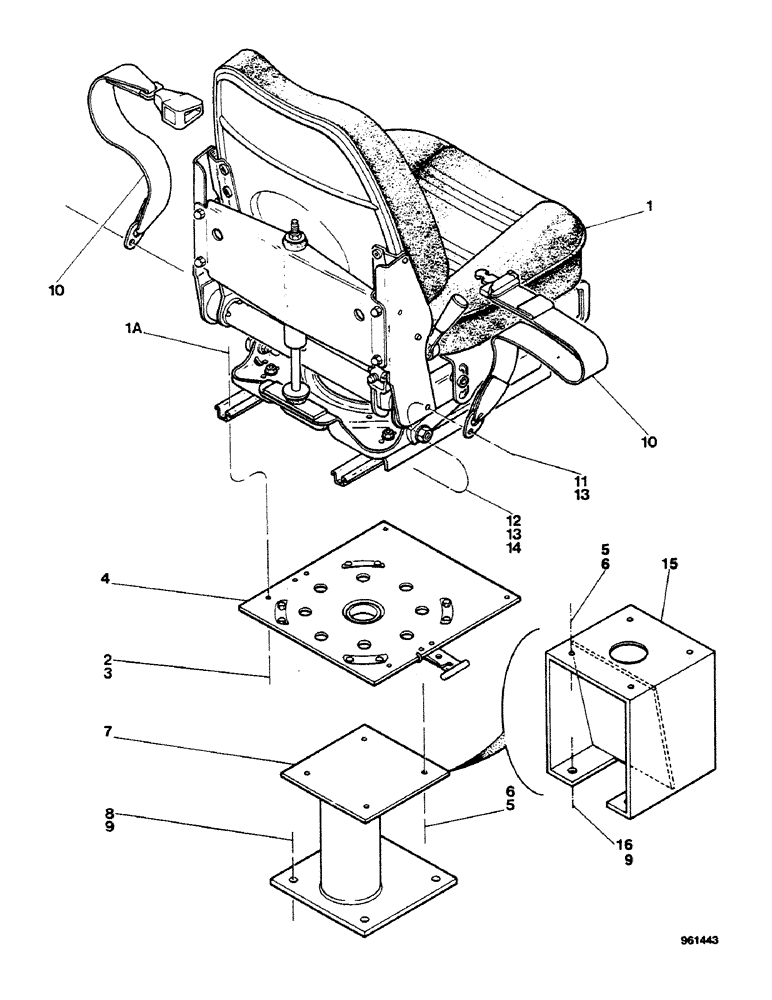

Запчасти Case 580G (446) - SEAT MOUNTING PARTS AND SEAT BELT (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

SEAT, See Figure 454

1шт.

1a

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

2

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

4шт.

3

9635082

NUT,5/16" - 18, Gr 5

4шт.

4

REF

INSTRUCTION

PLATE swivel, See Figure 450

1шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

4шт.

6

825-1108

NUT,Hex, M8, Cl 8

4шт.

7

D92605

SUPPORT

SPARE PART, Serial Range: -3.987.541

1шт.

8

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

9

192-23

LOCK WASHER,1/2"

4шт.

10

E19207

SAFETY BELT

seat

1шт.

E44526 + 113-335 (2) + 131-1129 (2)

1шт.

10

E44526

SAFETY BELT

seat

1шт.

11

114-301

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

113-335 + 131-1129

2шт.

11

113-335

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5, Full Thd

2шт.

12

192-22

LOCK WASHER,7/16"

If used

2шт.

13

195-529

WASHER,7/16", SAE

If used

4-2шт.

14

425-117

NUT,7/16"-20, G5

113-335 + 131-1129 (2)

2шт.

14

131-1129

LOCK NUT,7/16"-14, GA

(7/16NC)

2шт.

15

E46399

SUPPORT

SPARE PART PEDESTAL, Start Serial: 3.987.542

1шт.

16

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.
