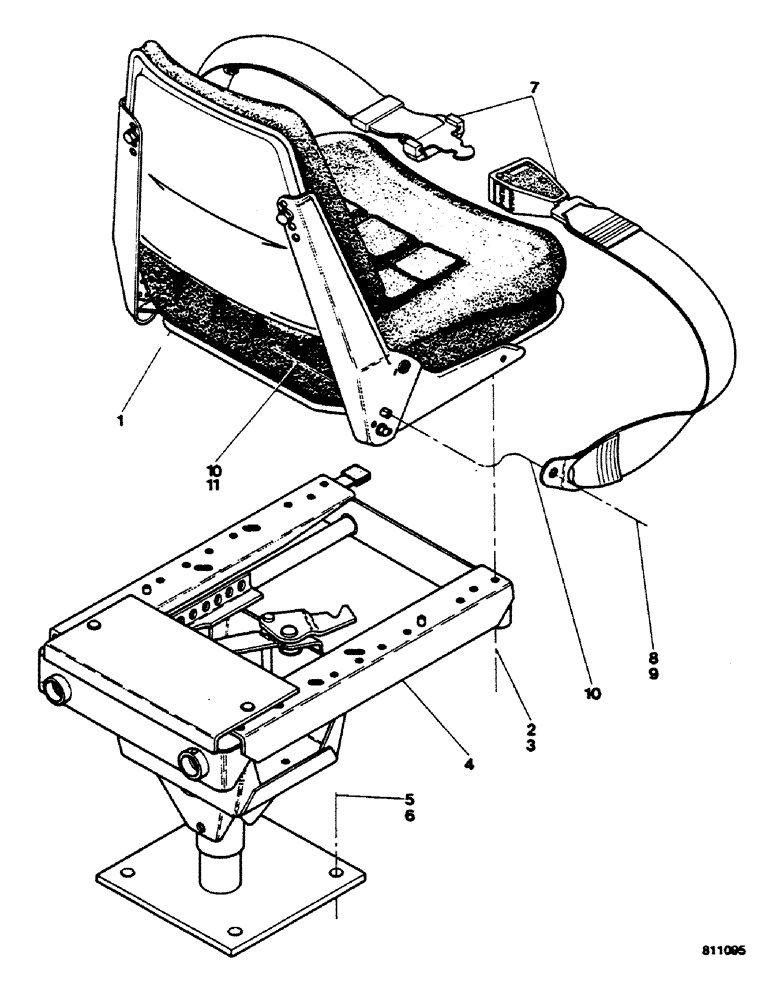

Запчасти Case 580G (444) - SEAT MOUNTING PARTS AND SEAT BELT (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

SEAT, See Figure 452

1шт.

2

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

4шт.

4

REF

INSTRUCTION

SUPPORT, See Figure 448

1шт.

5

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

6

192-23

LOCK WASHER,1/2"

4шт.

7

E19207

SAFETY BELT

seat

1шт.

E44526 + 113-335 (2) + 131-1129 (2)

1шт.

7

E44526

SAFETY BELT

seat

1шт.

8

114-301

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

113-335 + 131-1129

2шт.

8

113-335

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5, Full Thd

2шт.

9

192-22

LOCK WASHER,7/16"

If used

2шт.

10

195-529

WASHER,7/16", SAE

If used

4-2шт.

11

425-117

NUT,7/16"-20, G5

113-335 + 131-1129

2шт.

11

131-1129

LOCK NUT,7/16"-14, GA

(7/16 NC)

2шт.
