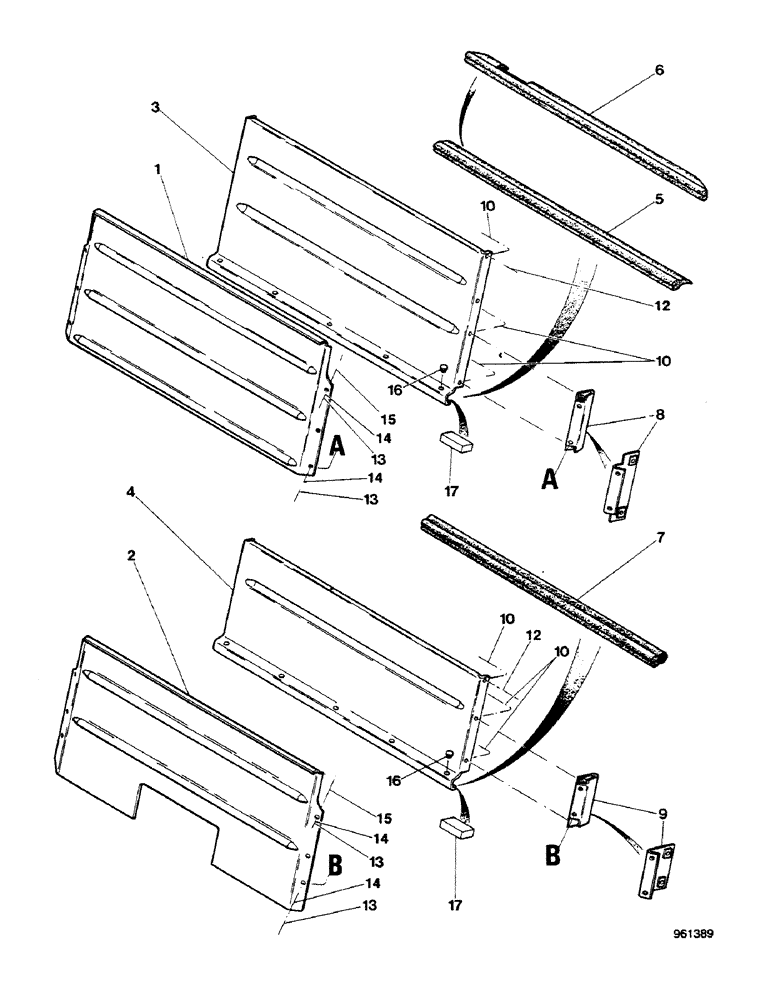

Запчасти Case 580G (442) - REAR CLOSURE PANELS - WITH CAB (09) - CHASSIS/ATTACHMENTS

1

F42922

PANEL

1шт.

2

D123294

PANEL

SPARE PART Dep, Serial Range: -3.918.606

1шт.

2

E44928

PANEL

SPARE PART Dep, E46147, Start Serial: 3.918.607

1шт.

2

E46147

PANEL

Dep

1шт.

3

E44979

PANEL

1шт.

4

E44978

PANEL

Dep, Serial Range: -3.948.949

1шт.

4

E46210

PANEL

SPARE PART Dep, Start Serial: 3.948.950

1шт.

5

D120442

GASKET

With loader only

1шт.

6

D91031

GASKET

Axi

1шт.

7

D91239

GASKET

SPARE PART Dep

1шт.

8

F96750

SUPPORT

F96836

2шт.

8

F96836

BRACKET

2шт.

9

F96755

SUPPORT

Dep, D123694

2шт.

9

D123694

BRACKET

Dep

2шт.

10

121-123

BOLT,Hex Serr, 5/16" - 18 x 3/4"

8шт.

12

131-937

FLANGE NUT,Flg, 5/16"-18

4шт.

13

121-135

FLANGE BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

6шт.

14

195-521

WASHER,5/16", SAE

6шт.

15

131-937

FLANGE NUT,Flg, 5/16"-18

6шт.

16

L60224

BUMPER

5шт.

17

D122831

PAD

SPARE PART foam

2шт.
