(440) - REAR CLOSURE PANELS - WITHOUT CAB

Запчасти Case 580G (440) - REAR CLOSURE PANELS - WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

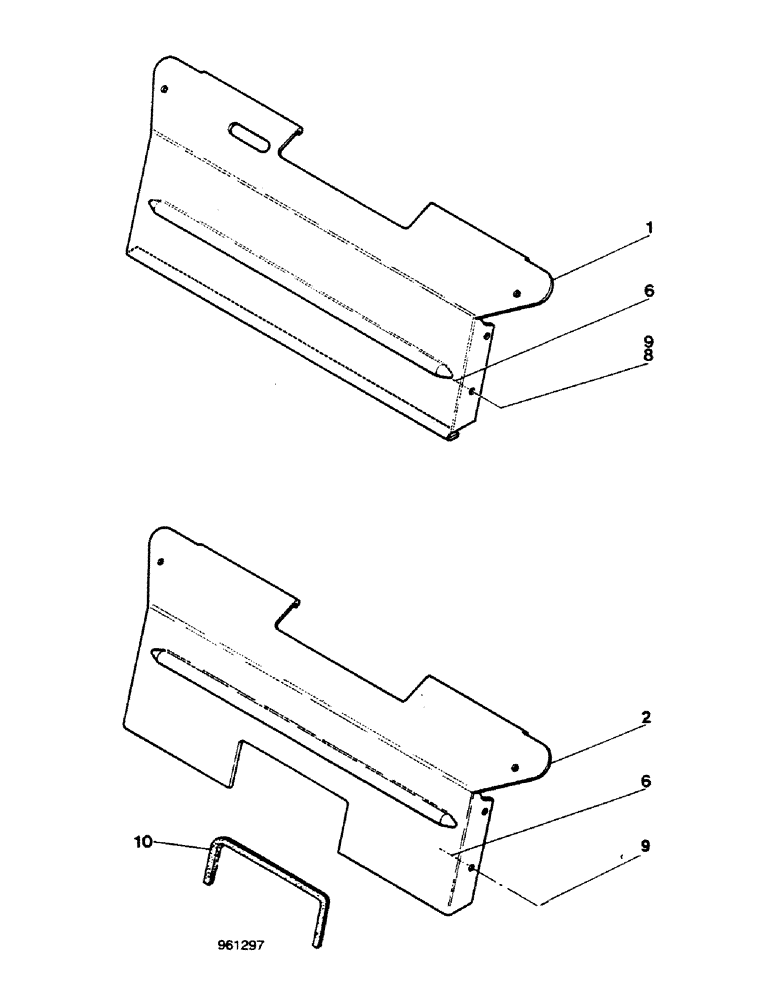

Схема запчастей Case 580G - (440) - REAR CLOSURE PANELS - WITHOUT CAB (09) - CHASSIS/ATTACHMENTS
6
9
6
2
9
10
9
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D120303

PANEL

SPARE PART

1шт.

2

D123336

PANEL

Dep, Serial Range: -3.918.606

1шт.

2

E45019

PANEL

SPARE PART Dep, Start Serial: 3.918.607

1шт.

6

121-135

FLANGE BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

6-4шт.

9

131-937

FLANGE NUT,Flg, 5/16"-18

6-4шт.

10

E44018

LINING

GUARD, If used

1шт.
