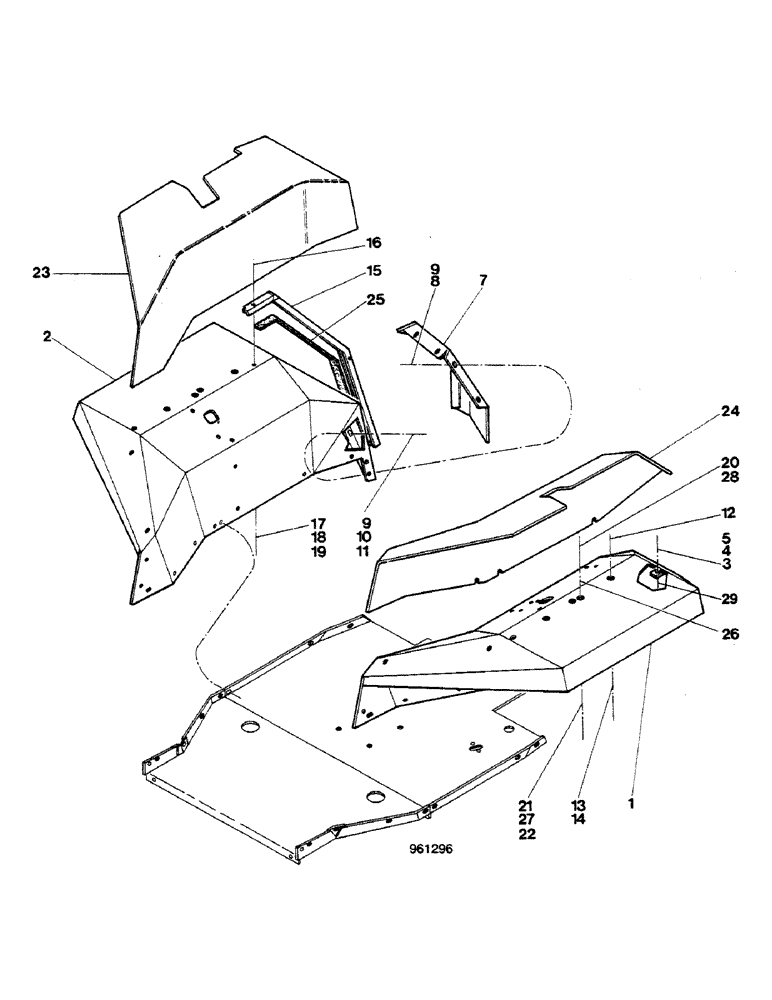

Запчасти Case 580G (438) - REAR FENDERS (09) - CHASSIS/ATTACHMENTS

1

D90088

FENDER

SPARE PART RH

1шт.

2

D90089

FENDER

SPARE PART LH

1шт.

3

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3шт.

4

92-6

LOCK WASHER,3/8"

3шт.

5

195-25

WASHER,3/8"

3шт.

7

D93718

GUARD

If used

1шт.

8

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

If used

4шт.

9

195-521

WASHER,5/16", SAE

If Used

8шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

If used

4шт.

11

9635082

NUT,5/16" - 18, Gr 5

If used

4шт.

12

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Without cab or canopy, E45844

4шт.

13

195-45

WASHER,3/4"

Without cab or canopy, E45844

4шт.

14

25-1012

NUT,3/4"-10, G5

w/o Cab or Canopy, E45844

4шт.

15

F96757

STANCHION

SEAL door, If used

1шт.

16

11-324

CARRIAGE BOLT,Short NK, 3/16"-24 x 1 1/2", G2

If used

5шт.

17

195-13

WASHER,#10

flat, If used

5шт.

18

92-3

LOCK WASHER,#10

If used

5шт.

19

129-17

NUT,Hex, #10 - 24

If used

5шт.

20

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Without cab or canopy, E45844

6шт.

21

195-104

WASHER,3/8"

flat, Without cab or canopy, E45844

6шт.

22

129-103

NUT,Hex, 3/8" - 16, Gr 5

Without cab or canopy, E45844

6шт.

23

E44022

LINING

SPARE PART LH, If used, Serial Range: -3.804.820

1шт.

23

E44403

LINING

SPARE PART LH, Serial Range: 3.804.821-3.808.596

1шт.

23

E45529

COVER

LH, Without cab or canopy, E45844, Start Serial: 3.808.597

1шт.

23

E45844

LINING

LH

1шт.

24

E44023

LINING

SPARE PART RH, If used, Serial Range: -3.804.820

1шт.

24

E44404

LINING

SPARE PART RH, Serial Range: 3.804.821-3.808.596

1шт.

24

E45530

COVER

RH, E45845, Start Serial: 3.808.597

1шт.

24

E45845

LINING

RH

1шт.

25

E44017

BAND

SPARE PART rubber

1шт.

26

D123679

BUSHING

SPARE PART Without cab or canopy, E45844

6шт.

27

192-21

LOCK WASHER,3/8"

Without cab or canopy, E45844

6шт.

28

195-2253

WASHER,13/32" x 1 1/2" x .238"

flat, Without cab or canopy, E45844

6шт.

29

25-106

NUT,3/8"-16, G5

If used

1шт.
