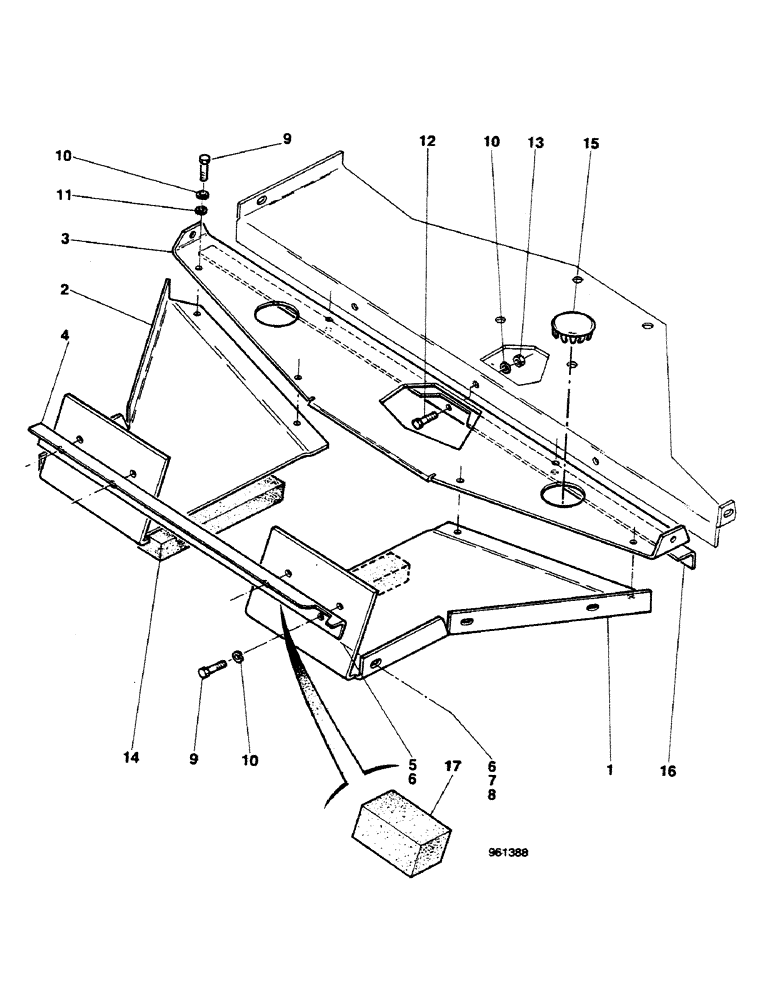

Запчасти Case 580G (437A) - REAR FLOOR PLATES - SIDESHIFT BACKHOE STARTING FROM NO. 3.948.950 (09) - CHASSIS/ATTACHMENTS

1

E45432

PLATE

SPARE PART RH

1шт.

2

E45434

PLATE

SPARE PART LH

1шт.

3

E45431

PLATE

SPARE PART

1шт.

4

E45436

BRACKET

SPARE PART angle

1шт.

5

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

6

195-21

WASHER,5/16"

Flat

12шт.

7

92-5

LOCK WASHER,5/16"

6шт.

8

9635082

NUT,5/16" - 18, Gr 5

6шт.

9

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

11шт.

10

92-5

LOCK WASHER,5/16"

14шт.

11

195-21

WASHER,5/16"

Flat

7шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

13

9635082

NUT,5/16" - 18, Gr 5

3шт.

14

E45567

FOAM

SPARE PART

2шт.

15

205-72

HOLE PLUG BUTTON,3"

2шт.

16

E45843

BRACKET

SPARE PART angle

1шт.

17

E46169

FOAM

SPARE PART

2шт.
