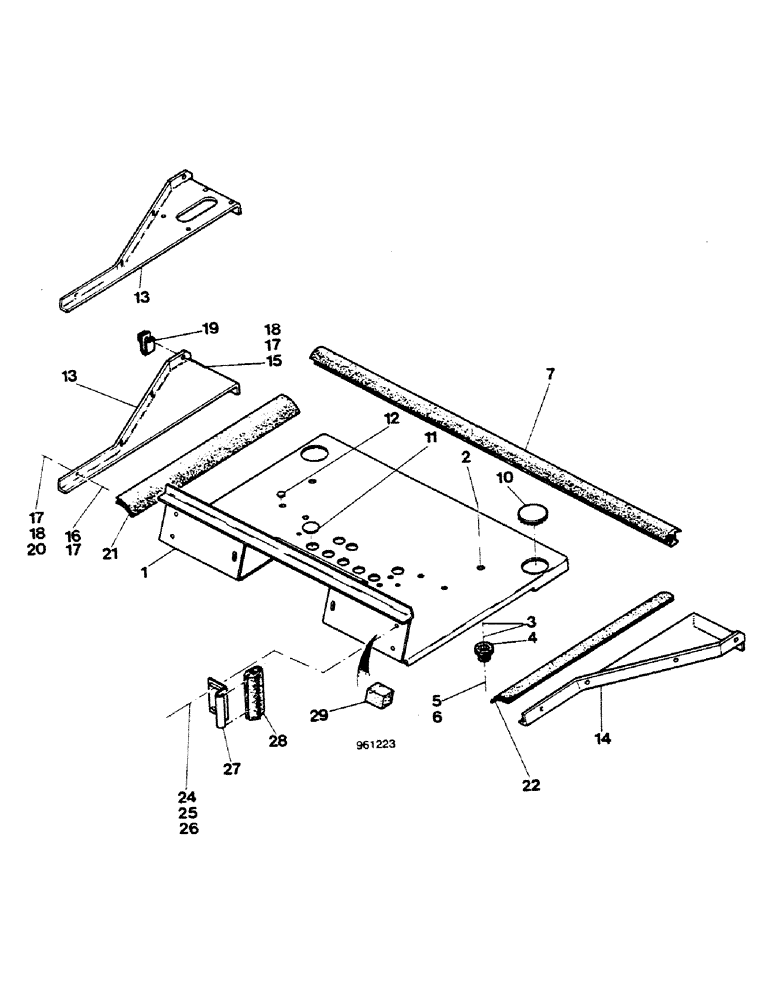

Запчасти Case 580G (436) - REAR FLOOR PLATES - SIDESHIFT BACKHOE NO. 3.948.949 (09) - CHASSIS/ATTACHMENTS

1

D93863

PLATE

SPARE PART, Serial Range: -3.918.606

1шт.

1

E45017

PLATE

SPARE PART, Start Serial: 3.918.607

1шт.

2

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

4шт.

3

95-8

WASHER,1/2"

flat

4шт.

3

D123624

BUSHING

SPARE PART

4шт.

4

R29799

SHOCK ABSORBER

4шт.

5

B15606

WASHER

4шт.

6

131-10

NUT,1/2"-13, GB

4шт.

7

D91255

GASKET

SPARE PART

1шт.

10

205-72

HOLE PLUG BUTTON,3"

2шт.

11

353-413

PLUG,Dome, 1.187" hole, Nylon

If used

2шт.

12

353-403

PLUG,Dome, .437" hole, Nylon

If used

4шт.

13

E44527

BRACKET

PLATE

1шт.

13

E44533

BRACKET

SPARE PART PLATE, With boom latch

1шт.

14

E44530

BRACKET

PLATE

1шт.

15

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

16

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

17

195-21

WASHER,5/16"

Flat

14шт.

18

92-5

LOCK WASHER,5/16"

8шт.

19

131-636

SPRING NUT,J, Ret, 5/16"-18

2шт.

20

9635082

NUT,5/16" - 18, Gr 5

2шт.

21

D91237

GASKET

1шт.

22

D91237

GASKET

1шт.

24

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

With a cab only, if used

4шт.

25

92-5

LOCK WASHER,5/16"

With a cab only, if used

4шт.

26

195-21

WASHER,5/16"

Flat, With a cab only, If used

4шт.

27

D121449

BRACKET

With a cab only, If used

2шт.

28

D121457

GASKET

With a cab only, If used

2шт.

29

E44229

FOAM

2шт.
