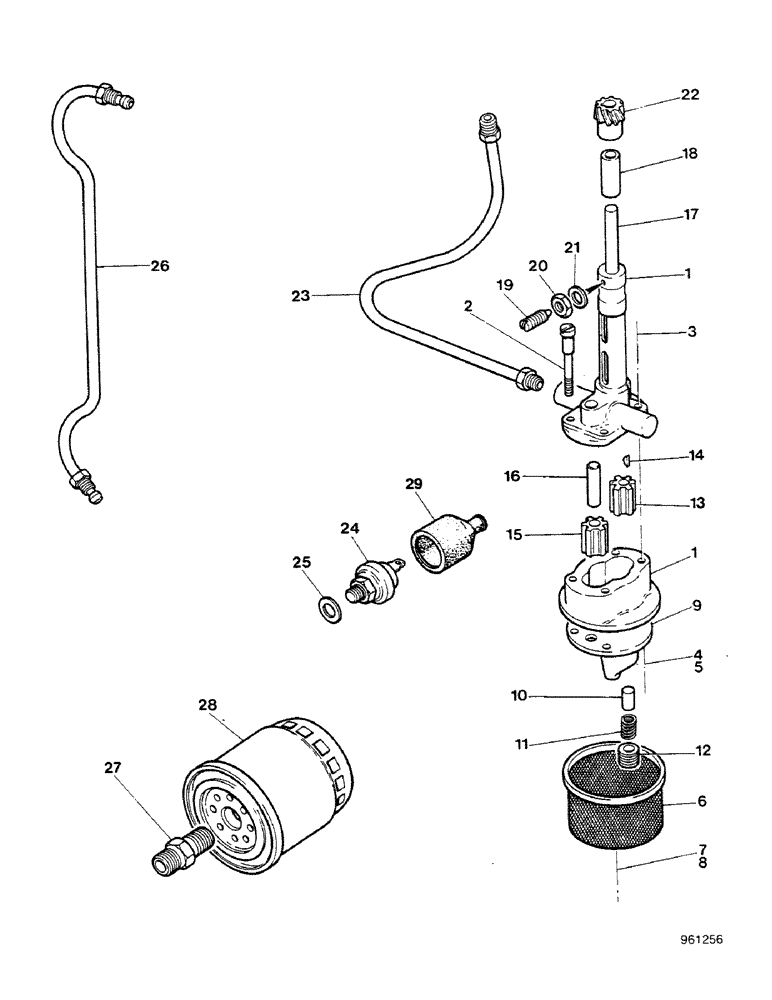

Запчасти Case 580G (046) - ENGINE - OIL PUMP AND OIL FILTER (02) - ENGINE

K954067

PUMP, ENGINE OIL

ASSY, Includes: Ref. 1 - 22

1шт.

1

K961009

HOUSING

bracket and gear

1шт.

2

K902061

STEP BOLT

BOLT special

2шт.

3

13-434

BOLT,Hex, 1/4" - 20 x 2-1/8", Gr 5

2шт.

4

25-104

NUT,1/4"-20, G5

4шт.

5

92-4

LOCK WASHER,1/4"

4шт.

6

K12013

FILTER

1шт.

7

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

8

92-4

LOCK WASHER,1/4"

1шт.

K953815

VALVE

relief, Includes: Ref. 9 - 12

1шт.

9

K953009

COVER

1шт.

10

K953008

PLUNGER

1шт.

11

K12961

SPRING

1шт.

12

K953010

SCREW,3/8" x 9/16"

adjusting

1шт.

13

K953370

ROTOR

driven

1шт.

14

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

1шт.

15

K949997

ROTOR

driven

1шт.

16

K902060

SPINDLE

SHAFT driven

1шт.

17

K953375

SPINDLE

SHAFT drive

1шт.

18

K30016

BUSHING

1шт.

19

K928254

SCREW,7/16" - 14 x 1 5/16"

set

1шт.

20

K607516

NUT

1шт.

21

K14674

WASHER

1шт.

22

K902051

GEAR

1шт.

23

K904180

PIPE

1шт.

24**

K903851

PRESSURE SWITCH

SENDER engine oil pressure, K311686

1шт.

24

K311686

SWITCH, PRESSURE

PRESSURE SWITCH SENDER engine oil

1шт.

25*

K626521

SEALING WASHER

If used

1шт.

26

K902765

PIPE

1шт.

27

K200007

FITTING

1шт.

28

84264509

ENGINE OIL FILTER

oil

1шт.

29*

E45078

CAP

SPARE PART

1шт.
