Запчасти Case 580G (434) - REAR FLOOR PLATES - AXIAL BACKHOE (09) - CHASSIS/ATTACHMENTS

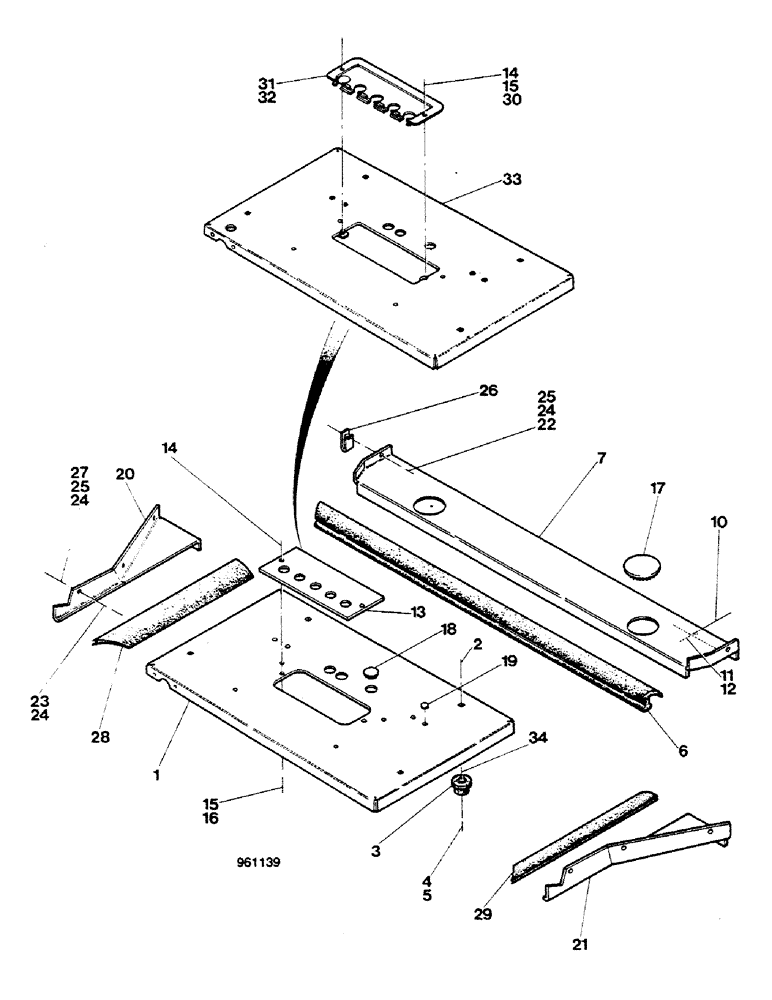

Схема запчастей Case 580G - (434) - REAR FLOOR PLATES - AXIAL BACKHOE (09) - CHASSIS/ATTACHMENTS
29
20
3
33
13
14
12
24
22
14
19
10
15
18
34
15
25
30
1
7
24
11
21
25
5
2
4
6
24
27
23
28
26
31
16
32
17

Артикул

Название

Примечание

Количество

1

D91060

PLATE

D124433 + D121493, Serial Range: -3.930.964

1шт.

2

12-840

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 2 1/2", Gr 2

4шт.

3

R29799

SHOCK ABSORBER

4шт.

4

B15606

WASHER

4шт.

5

131-10

NUT,1/2"-13, GB

4шт.

6

D91293

GASKET

1шт.

7

D91286

PLATE

1шт.

10

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

7шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

7шт.

12

9635082

NUT,5/16" - 18, Gr 5

7шт.

13

D120626

PLATE

SPARE PART ASSY, Includes: Ref. 13, Serial Range: -3.930.964

1шт.

13

D120483

GASKET

, Serial Range: -3.930.964

1шт.

13

D89075

PLATE

D120626, Serial Range: -3.930.964

1шт.

14

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

16

9635082

NUT,5/16" - 18, Gr 5

, Serial Range: -3.930.964

2шт.

17

205-72

HOLE PLUG BUTTON,3"

2шт.

18

353-413

PLUG,Dome, 1.187" hole, Nylon

With cab, If used

2шт.

19

353-403

PLUG,Dome, .437" hole, Nylon

With cab, If used

4шт.

20

D91290

PLATE

SPARE PART

1шт.

21

D91287

PLATE

SPARE PART

1шт.

22

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

23

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

24

195-21

WASHER,5/16"

Flat

14шт.

25

92-5

LOCK WASHER,5/16"

8шт.

26

131-636

SPRING NUT,J, Ret, 5/16"-18

2шт.

27

9635082

NUT,5/16" - 18, Gr 5

6шт.

28

D120423

GASKET

Without cab

1шт.

28

D91032

GASKET

With cab, If used

1шт.

29

D120422

GASKET

Without cab

1шт.

29

D91033

GASKET

With cab, If used

1шт.

30

195-521

WASHER,5/16", SAE

, Start Serial: 3.930.965

2шт.

31

D121493

PLATE

ASSY, Includes: Ref. 32, Start Serial: 3.930.965

1шт.

32

D121492

GASKET

, Start Serial: 3.930.965

1шт.

33

D124433

PLATE

, Start Serial: 3.930.965

1шт.

34

D123624

BUSHING

SPARE PART

4шт.

Выбрано товаров: 36
