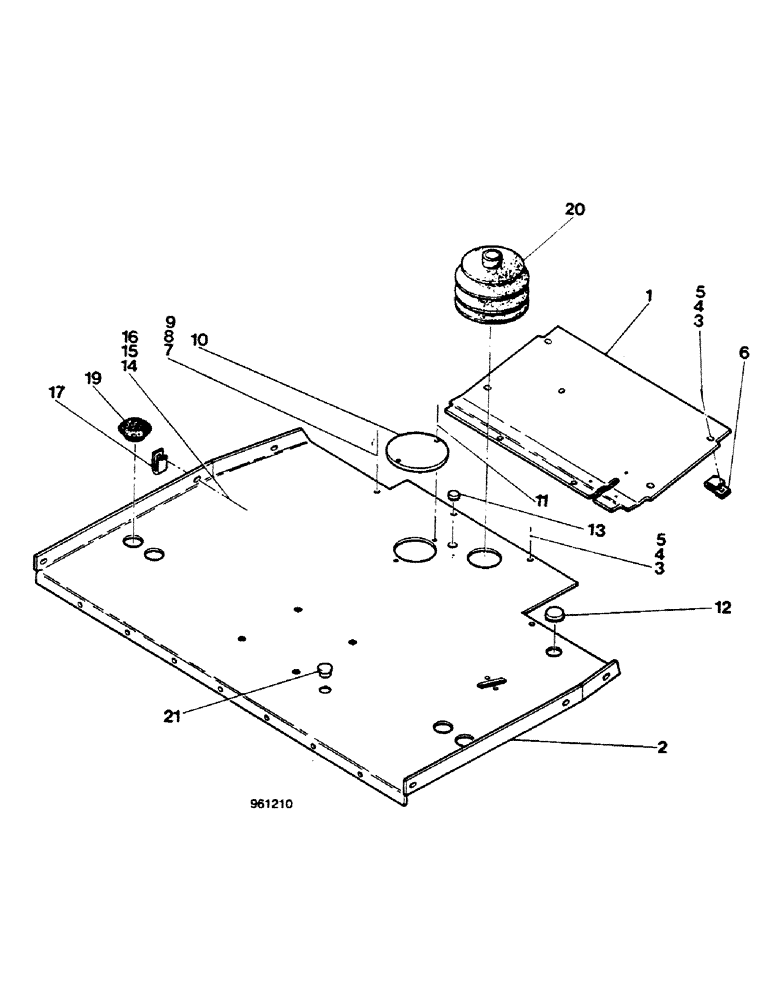

Запчасти Case 580G (430) - FRONT FLOOR PLATES (09) - CHASSIS/ATTACHMENTS

1

D91279

PLATE

SPARE PART front

1шт.

2

D91294

PLATE

, Serial Range: -3.938.265

1шт.

2

D124936

PLATE ASSY.

, Start Serial: 3.938.266

1шт.

3

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

8шт.

4

92-5

LOCK WASHER,5/16"

8шт.

5

95-5

WASHER,3/8" x 7/8" x .083"

flat

8шт.

6

131-636

SPRING NUT,J, Ret, 5/16"-18

4шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

8

92-6

LOCK WASHER,3/8"

1шт.

9

195-25

WASHER,3/8"

1шт.

10

D93799

COVER

SPARE PART

1шт.

11

182-241

SCREW,Sl Pan Hd, 5/16" - 18 x 5/8"

2шт.

12

353-415

PLUG,Dome, 1.500" hole, Nylon

1шт.

13

353-408

PLUG,Dome, .750" hole, Nylon

1шт.

14

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

15

92-5

LOCK WASHER,5/16"

6шт.

16

195-21

WASHER,5/16"

Flat

6шт.

17

131-636

SPRING NUT,J, Ret, 5/16"-18

6шт.

19

D120838

GROMMET

PLUG

2/4шт.

20

D123562

BOOT

1шт.

21

353-404

PLUG,Dome, .500" hole, Nylon

If Used

1шт.
