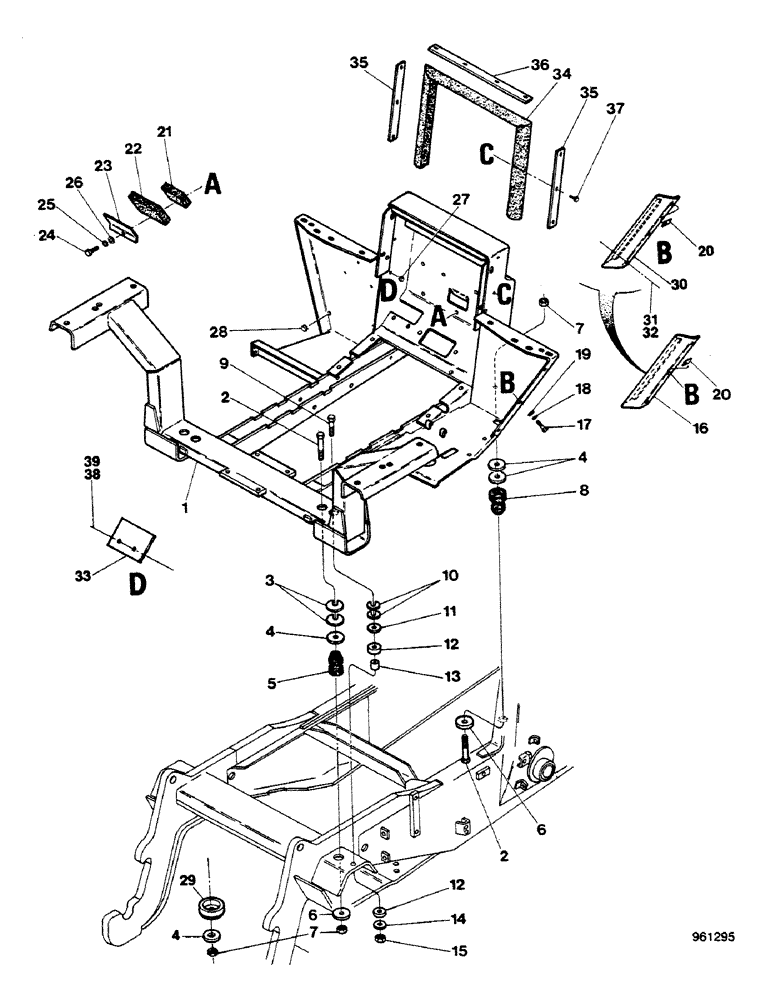

Запчасти Case 580G (428) - OPERATORS COMPARTMENT FRAME AND MOUNTING (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
D90067
FRAME
SPARE PART, Serial Range: -3.938.265
1шт.
1
E45677
FRAME
, Start Serial: 3.938.266
1шт.
2
113-2642
BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8
4шт.
3
D91658
WASHER
1шт.
4
D89007
WASHER
8шт.
5
A141451
SHOCK ABSORBER
2шт.
6
D83682
WASHER
4шт.
7
129-563
NUT,5/8"-11, G8
4шт.
8
D89717
MOUNTING PARTS
INSULATOR
2шт.
9
13-1052
BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5
without cab or ROPS, if used
2шт.
10
D120859
SHIM
without cab or ROPS, If used
1шт.
11
D90958
BUSHING
without cab or ROPS, If used
2шт.
12
D90959
WASHER
without cab or ROPS, If used
4шт.
13
D90957
BUSHING
without cab or ROPS, If used
2шт.
14
D90873
WASHER
without cab or ROPS, If used
2шт.
15
25-1010
NUT,5/8"-11, G5
w/o Cab or ROPS, If used
2шт.
16
D87342
COVER
1шт.
17
13-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
Used with D87342
3шт.
18
92-5
LOCK WASHER,5/16"
Used with D87342
3шт.
19
95-5
WASHER,3/8" x 7/8" x .083"
flat, Used with D87342
3шт.
20
131-636
SPRING NUT,J, Ret, 5/16"-18
2/3шт.
21
D83654
PAD
1шт.
22
D83655
PAD
1шт.
23
D83656
PLATE
SPARE PART
1шт.
24
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
1шт.
25
92-6
LOCK WASHER,3/8"
1шт.
26
195-25
WASHER,3/8"
1шт.
27
353-400
PLUG,Dome, .250" hole, Nylon
Without cab or ROPS, if used
10шт.
28
353-403
PLUG,Dome, .437" hole, Nylon
Without cab or ROPS, If used
2шт.
29
D120267
RUBBER
BUMPER
2шт.
30
E44777
COVER ASSY
1шт.
31
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
2шт.
32
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
2шт.
33
E45688
PROTECTION PLATE
without cab or ROPS, If used
1шт.
34
D91309
SEAL
SPARE PART without cab or ROPS, If used
1шт.
35
D91132
PLATE
without cab or ROPS, If used
2шт.
36
D91131
PLATE
SPARE PART without cab or ROPS, If used
1шт.
37
163-13
SCREW,Hex, #10 - 24 x 3/4"
without cab or ROPS, If used
10шт.
37
195-13
WASHER,#10
flat, without cab or ROPS, If used
10шт.
37
86625057
NUT,#10-24, GB
Without cab or ROPS, if used
10шт.
38
113-3
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
Without cab or ROPS, if used
2шт.
39
195-518
WASHER,1/4", SAE
Without cab or ROPS, If used
2шт.
Выбрано товаров: 42
