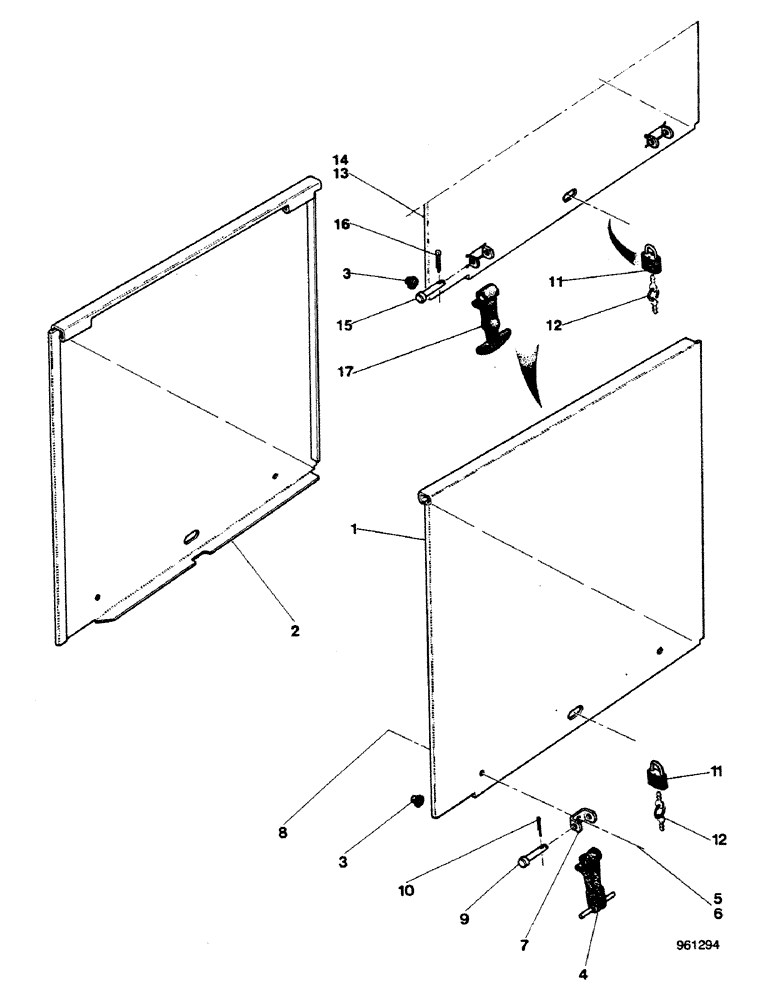

Запчасти Case 580G (424) - ENGINE SIDE PANELS (09) - CHASSIS/ATTACHMENTS

1

D88931

PANEL

RH

1шт.

D122138 + H54890 (2) + 132-3 (2) + E36300 (2) + 8-42490

1шт.

2

D88932

PANEL

LH

1шт.

D122113 + H54890 (2) + 132-3 (2) + E36300 (2) + 8-42490

1шт.

3

L60224

BUMPER

2шт.

4

L47157

HOOK

, Serial Range: -3.935.021

4шт.

5

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

, Serial Range: -3.935.021

4шт.

6

195-21

WASHER,5/16"

Flat, If used, Serial Range: -3.935.021

4шт.

7

L47159

BRACKET

, Serial Range: -3.935.021

4шт.

8

131-651

NUT,5/16"-18, GB

NUT, Serial Range: -3.935.021

4шт.

9

141-66

CLEVIS PIN,5/16" x 1 13/16"

, Serial Range: -3.935.021

4шт.

10

132-26

COTTER PIN

3/32" x 3/4", Serial Range: -3.935.021

4шт.

11

D93753

PADLOCK

Includes: Ref. 12

2шт.

12

R29555

KEY

master

2шт.

12

D93751

SET OF 2 KEYS

Yale

2шт.

13

D122138

PANEL

RH, Start Serial: 3.935.022

1шт.

14

D122113

PANEL

LH, Start Serial: 3.935.022

1шт.

15

H54890

CLEVIS PIN,4.76mm OD x 46.04mm L

, Start Serial: 3.935.022

4шт.

16

132-3

COTTER PIN,1/16" x 3/8"

, Start Serial: 3.935.022

4шт.

17

E36300

FASTENER

, Start Serial: 3.935.022

4шт.
