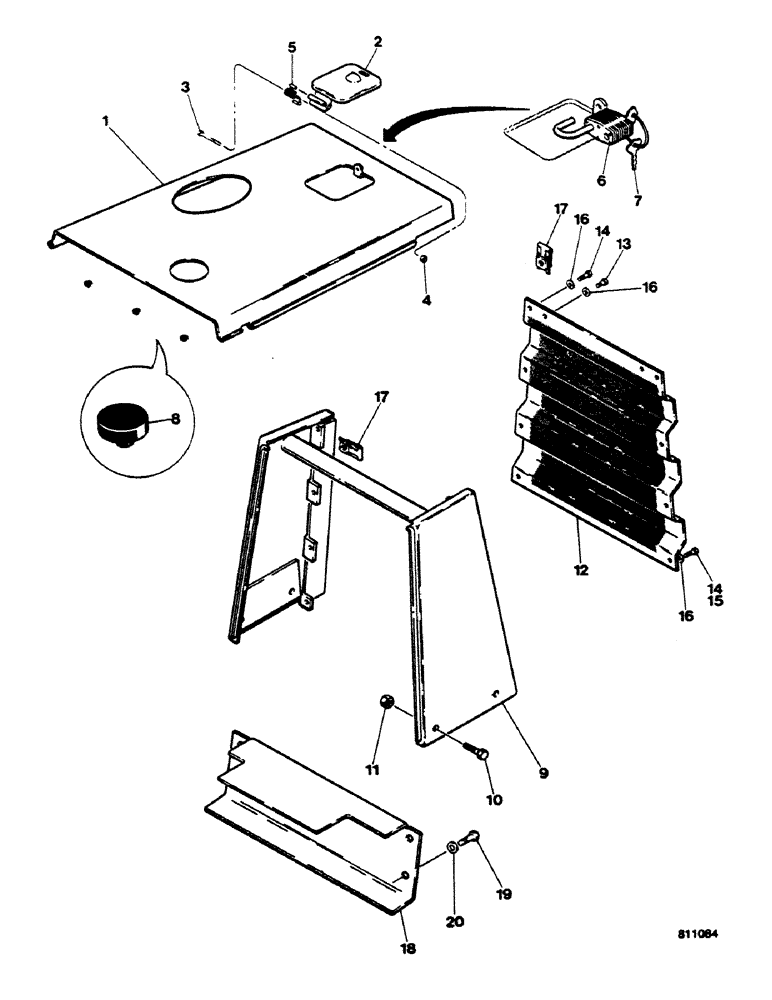

Запчасти Case 580G (422) - HOOD AND RADIATOR WRAPPER (09) - CHASSIS/ATTACHMENTS

1

D92600

GUARD

SPARE PART HOOD, See other option figure 489A, Serial Range: -3.938.265

1шт.

2

D82595

COVER

SPARE PART

1шт.

3

13-452

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

1шт.

4

131-2

NUT,1/4"-20, GB

1шт.

5

D121677

SPRING

1шт.

6

D93753

PADLOCK

If used

1шт.

7

R29555

KEY

master

2шт.

7

D93751

SET OF 2 KEYS

Yale

2шт.

8

L60224

BUMPER

3-7шт.

9

D88842

GUARD

WRAPPER

1шт.

10

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

11

25-1012

NUT,3/4"-10, G5

4шт.

12

D91062

GUARD

GRILLE, D91062 + L60224 (4)

1шт.

13

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

14

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6-8шт.

15

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

With front counterweight

2шт.

16

195-525

WASHER,3/8", SAE

If used

10-6шт.

16

195-104

WASHER,3/8"

flat

6шт.

17

131-856

SPRING NUT,Ret, J, 3/8"-16

10-6шт.

18

E44013

GUARD

(Not with extendahoe)

1шт.

18

E44965

GUARD ASSY.

Used with auxiliary hydraulics

1шт.

19

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

4шт.

20

195-45

WASHER,3/4"

4шт.
