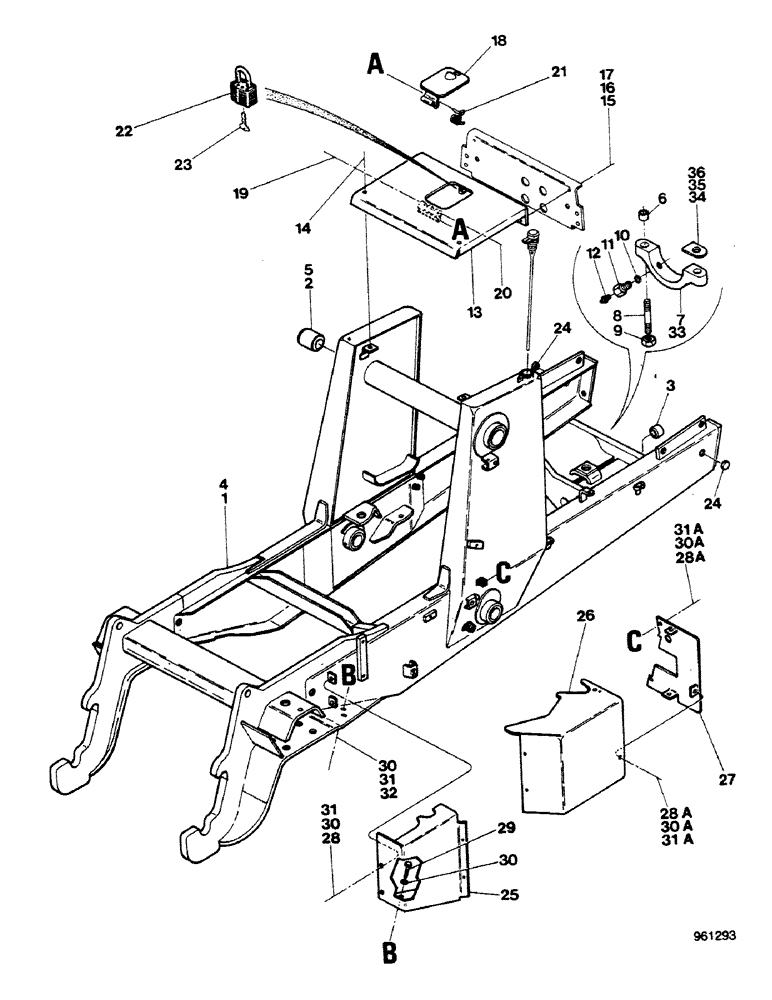

Запчасти Case 580G (420) - LOADER - CHASSIS AND CONTROL VALVE COVER (09) - CHASSIS/ATTACHMENTS

1

D91398

FRAME

2RM, Includes: Ref. 2 and 3, Serial Range: -3.935.401

1шт.

D124977 + D123567 (2) + D25280 (6)

1шт.

1

D124977

FRAME

Includes: Ref. 2 and 3, Start Serial: 3.935.402

1шт.

2

D65731

BUSHING

2RM

2шт.

3

D69221

BUSHING,45.23mm ID x 57.16mm OD x 25mm L

2RM

2шт.

4

D92320

FRAME

SPARE PART 4RM, Includes: Ref. 5 - 9, Serial Range: -3.935.396

1шт.

D124976 + D123567 (2) + D25280 (6)

1шт.

4

D124976

FRAME

SPARE PART Includes: Ref. 5 - 9, Start Serial: 3.935.397

1шт.

No. 3.941.001 Except for No. 3.940.979 + 3.940.986

1шт.

5

D65731

BUSHING

4RM

2шт.

6

K956979

BUSHING

SLEEVE 4RM

4шт.

7+

NSS

NOT SOLD SEPARAT

CLAMP 4RM, Order E44837

2шт.

8

K956990

STUD

4RM

4шт.

9

E45234

NUT

4RM

4шт.

10

892-1012

LOCK WASHER,M12

lock 4RM

1шт.

11

K965424

ADAPTER

4RM

2шт.

12

5194260

LUBE NIPPLE,M6 x 1, 16mm lg

4RM

2шт.

13

E46027

COVER

1шт.

14

164-222

HEX SOC SCREW,Btn Hd, 1/2" - 13 x 1/2"

2шт.

15

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

16

92-5

LOCK WASHER,5/16"

2шт.

17

195-21

WASHER,5/16"

Flat

2шт.

18

D82595

COVER

SPARE PART

1шт.

19

13-452

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

1шт.

20

131-2

NUT,1/4"-20, GB

1шт.

21

D121677

SPRING

1шт.

22

D93753

PADLOCK

Includes: Ref. 23

1шт.

23

R29555

KEY

master

2шт.

23

D93751

SET OF 2 KEYS

Yale

2шт.

24

41-1020

PLUG,Cup, 1 1/4"

2шт.

25

D120245

COVER

SPARE PART

1шт.

26

D124905

COVER

SPARE PART

1шт.

27

D90240

COVER

SPARE PART

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

7шт.

28a

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

29

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

30

195-25

WASHER,3/8"

8шт.

30

95-6

WASHER,3/8"

8шт.

30a

195-525

WASHER,3/8", SAE

4шт.

31

92-6

LOCK WASHER,3/8"

8шт.

31a

192-21

LOCK WASHER,3/8"

4шт.

32

25-106

NUT,3/8"-16, G5

3шт.

E44837

HALF-COLLAR

HALF COLLAR KIT repair 4RM, Includes: Ref. 33 - 36

1шт.

No. 3.941.001 Except for No. 3.940.979 + 3.940.986

1шт.

33

NSS

NOT SOLD SEPARAT

CLAMP 4RM, E44837

1шт.

34

E44831

SHIM,.020" Thk

4RM

2шт.

35

E44832

SHIM,.012" Thk

4RM

4шт.

36

E44833

SHIM,.008" Thk

4RM

4шт.
