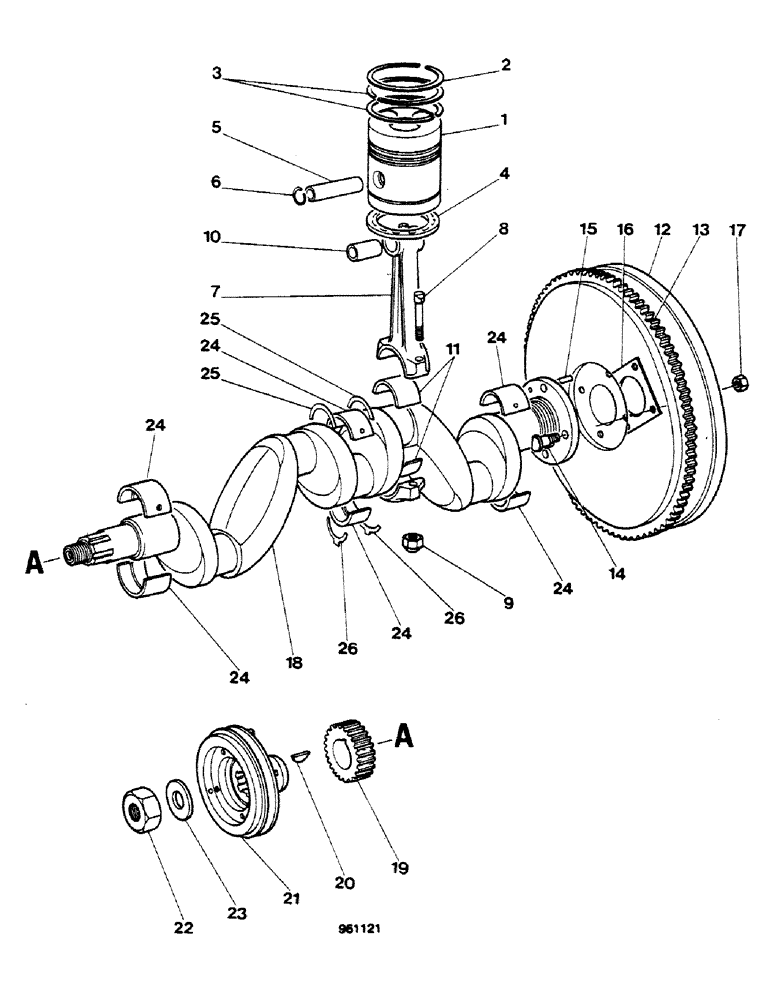

Запчасти Case 580G (042) - ENGINE - PISTONS, CRANKSHAFT, AND FLYWHEEL (02) - ENGINE

K949474

PISTON & RINGS KIT

ASSY, Includes: Ref. 1 - 6

4шт.

1

NSS

NOT SOLD SEPARAT

PISTON

1шт.

2

K943881

RING, PISTON

No. 1

1шт.

3

K943882

RING, PISTON

No. 2 and 3

2шт.

4

K206956

RING, PISTON

RAIL oil control

1шт.

5

K904370

PIN

PISTON

1шт.

6

K34501

RING, SNAP

RING SNAP

2шт.

K949719

PISTON

ASSY (+ 0.020"), Includes: Ref. 1 - 6

4шт.

1

NSS

NOT SOLD SEPARAT

PISTON

1шт.

2

K943885

RING, PISTON

No. 1

1шт.

3

K943886

RING, PISTON

No. 2 and 3

2шт.

4

K206961

RING, PISTON

RAIL oil control

1шт.

5

K904370

PIN

piston

1шт.

6

K34501

RING, SNAP

RING SNAP

2шт.

7

K80043

ROD, CONNECTING

ASSY, Includes: Ref. 8 - 10

4шт.

8

K207581

STEP BOLT

2шт.

9

K623151

LOCK NUT

2шт.

10

K31669

BEARING

1шт.

11

K207436

HALF-BEARING, CRANKS

8шт.

12

K948608

FLYWHEEL

ASSY, Includes: Ref. 13

1шт.

13

K946819

GEAR

ring

1шт.

14

K903431

STEP BOLT

4шт.

15

K10629

PIN

dowel

1шт.

16

K946238

WASHER

1шт.

17

25-117

NUT,7/16"-20, G5

4шт.

18

K210100

CRANKSHAFT

1шт.

18

K210100R

REMAN-CRANKSHAFT

580G CASE CONSTRUCTION KING LOADER BACKHOE Comes with main, thrust & connecting rod bearings

1шт.

18

K210100C

CORE-CRANKSHAFT

Return Number

1шт.

19

K945094

GEAR

34 teeth

1шт.

20

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

1шт.

21

K947778

PULLEY

1шт.

22

K623300

NUT

special

1шт.

23

K626403

WASHER

special

1шт.

24

K928541

HALF-BEARING, CRANKS

SET main

6шт.

25

K928542

SET

WASHER thrust

2шт.

K928560

THRUST WASHER

thrust (+ 0.005")

2шт.

K928562

WASHER, THRUST

(+ 0.020")

2шт.

26

K928543

SET

WASHER thrust

2шт.

K928561

WASHER

thrust (+ 0.005")

2шт.

K928563

RING

thrust (+ 0.020")

2шт.

K962158

CRANKSHAFT BEARING

KIT liner, Includes crankshaft and rod

1шт.

K928541

HALF-BEARING, CRANKS

crankshaft

6шт.

K207436

HALF-BEARING, CRANKS

rod

8шт.

K962163

BEARING

KIT liner (-- 0.010"), Includes crankshaft and rod

1шт.

K928554

BEARING SET

crankshaft

6шт.

K912638

HALF-BEARING, CRANKS

rod

8шт.

K962164

BEARING

KIT liner (-- 0.020"), Includes crankshaft and rod

1шт.

K928555

BEARING SET

crankshaft

6шт.

K912639

HALF-BEARING, CRANKS

rod

8шт.

K962165

BEARING

KIT liner (-- 0.030"), Includes crankshaft and rod

1шт.

K928556

BEARING SET

crankshaft

6шт.

K913941

HALF-BEARING, CRANKS

rod

8шт.

K261069

SET OF RINGS

KIT, Includes rings and rail

4шт.

K943881

RING, PISTON

No. 1

1шт.

K943882

RING, PISTON

No. 2 and 3

2шт.

K206956

RING, PISTON

RAIL oil control

1шт.

K261070

PISTON RING SET

KIT (+ 0.020"), Includes rings and rail

4шт.

K943885

RING, PISTON

No. 1

1шт.

K943886

RING, PISTON

No. 2 and 3

2шт.

K206961

RING, PISTON

RAIL oil control

1шт.

K963484

ADHESIVE

1шт.

K964584

OIL

Molybdenum disulphide

1шт.

K964857

LINER, ENGINE CYLIND

Used with standard pistons, not original equipment

4шт.
