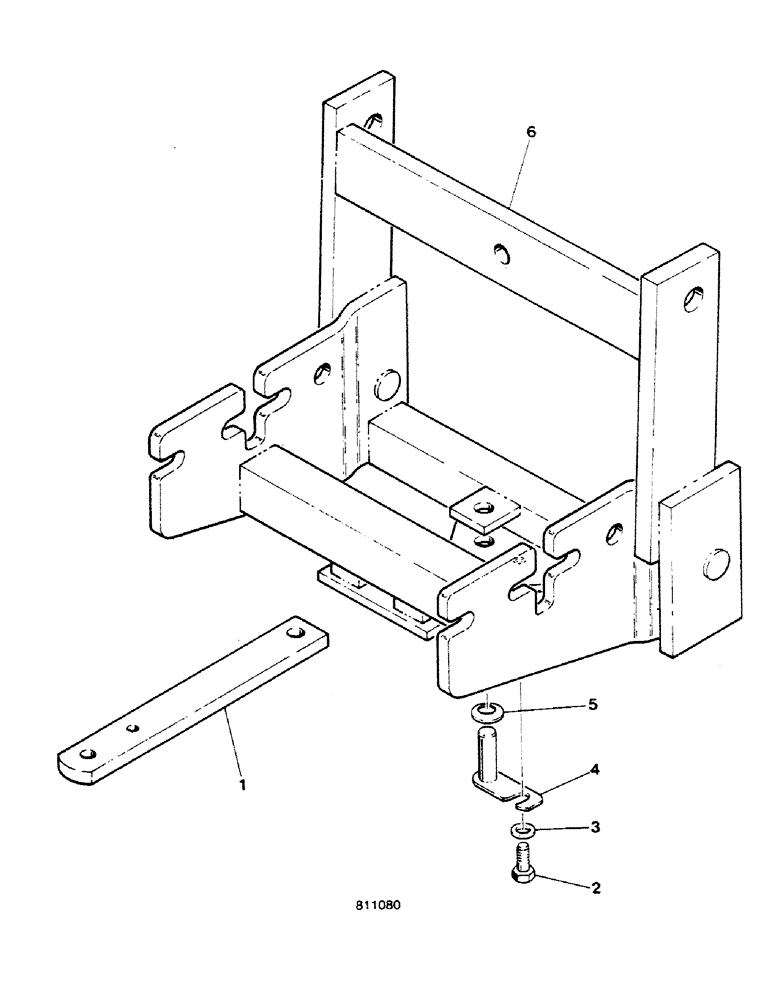

Запчасти Case 580G (414) - DRAWBAR (09) - CHASSIS/ATTACHMENTS

1

D93293

DRAWBAR, SWINGING

1шт.

2

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

1шт.

3

195-45

WASHER,3/4"

1шт.

4

G14403

PIN

1шт.

5

A185068

WASHER

SPRING

1шт.

6

REF

INSTRUCTION

FRAME, See Figure 416

1шт.
