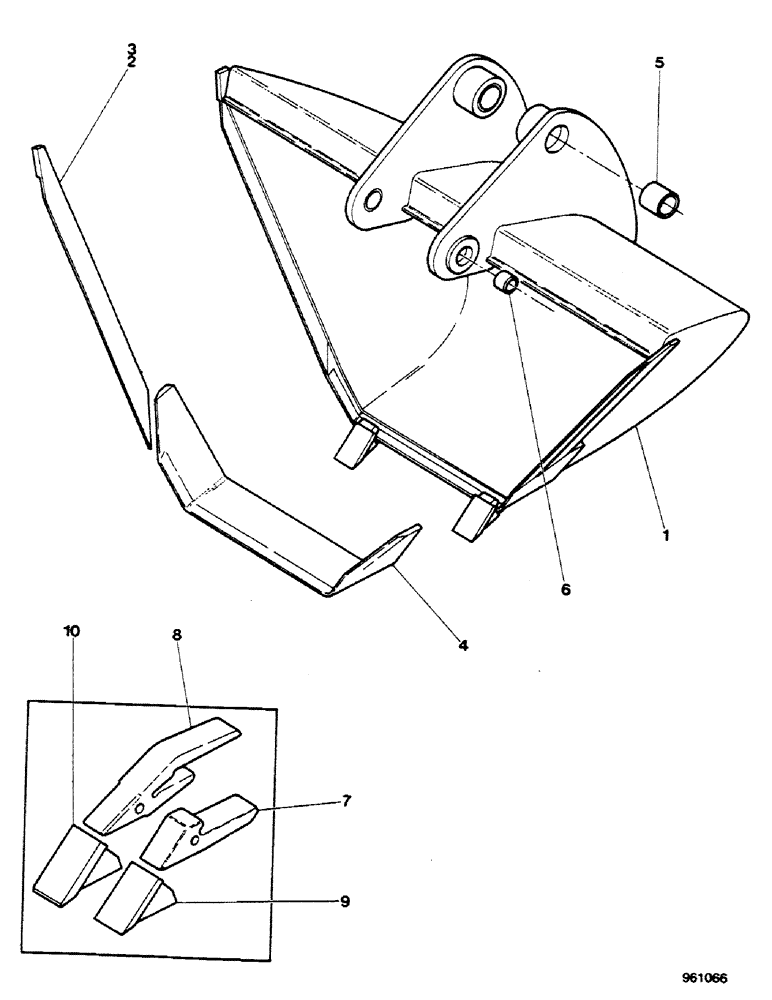

Запчасти Case 580G (410) - BACKHOE - DITCH DIGGING BUCKET (09) - CHASSIS/ATTACHMENTS

1

E15133

BUCKET

Includes: Ref. 2 - 6

1шт.

2

D43331

EDGE, CUTTING

1шт.

3

D43332

EDGE, CUTTING

1шт.

4

D43341

EDGE, CUTTING

1шт.

5

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

2шт.

6

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

2шт.

7

D26368

SUPPORT

SHANK

1шт.

8

D58499

SUPPORT

SHANK, heavy duty points

1шт.

9

D58576

TOOTH

point (H and L)

1шт.

9

D58577

TOOTH

point (Fabco)

1шт.

10

D58592

TOOTH

point (H and L), heavy duty points

1шт.

10

D58593

TOOTH

point (Fabco), heavy duty points

1шт.
