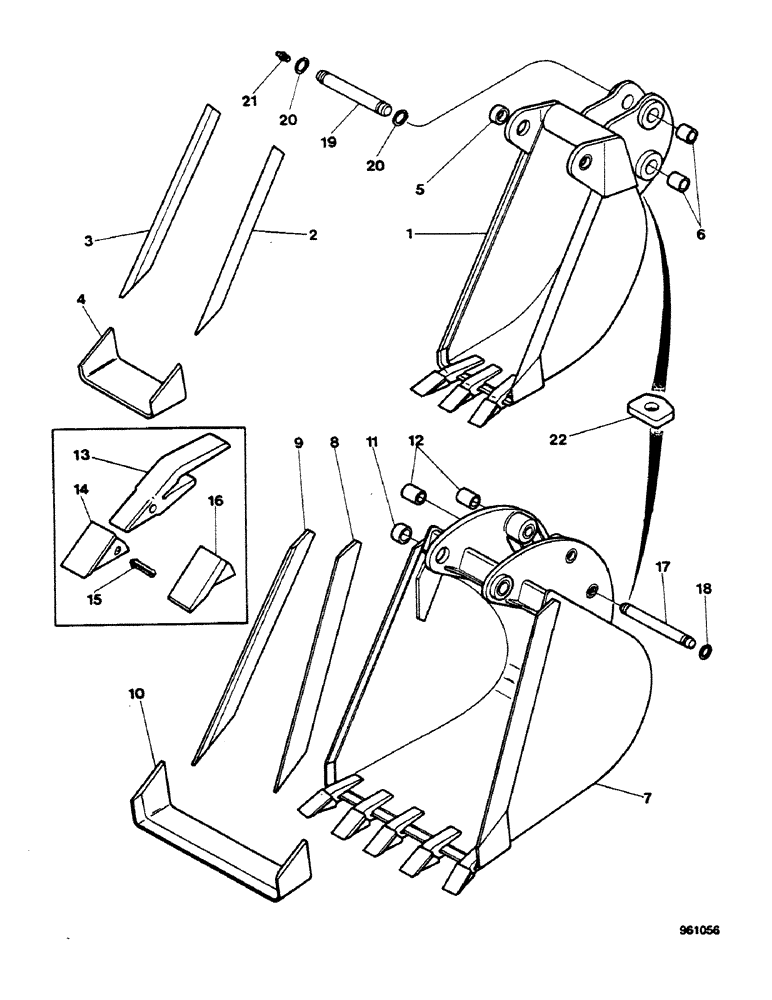

Запчасти Case 580G (404) - BACKHOE - HEAVY DUTY TRENCHING BUCKETS (09) - CHASSIS/ATTACHMENTS

1

E37011

BUCKET

12", Includes: Ref. 2 - 6

1шт.

1

E37619

BUCKET

12", Includes: Ref. 2 - 6

1шт.

Only for E37619 - E33971/E45316/318 buckets

1шт.

1

E42530

BUCKET

12", without points, Includes: Ref. 2 - 6

1шт.

2

E37012

BLADE

SPARE PART edge-cutting

1шт.

3

E37013

BLADE

SPARE PART edge-cutting

1шт.

4

E37014

BLADE

SPARE PART edge-cutting

1шт.

5

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

4шт.

7

D57546

BUCKET

18", Includes: Ref. 8 - 12

1шт.

7

E33971

BUCKET

18", Includes: Ref. 8 - 12

1шт.

Only for E37619 - E33971/E45316/318 buckets

1шт.

7

E42531

BUCKET

18", without points, Includes: Ref. 8 - 12

1шт.

8

D57550

EDGE, CUTTING

1шт.

9

D57551

EDGE, CUTTING

1шт.

10

D57594

EDGE, CUTTING

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

4шт.

7

E45315

BUCKET

24", Includes: Ref. 8 - 12

1шт.

7

E45316

BUCKET

24", Includes: Ref. 8 - 12

1шт.

Only for E37619 - E33971/E45316/318 buckets

1шт.

7

E42532

BUCKET

24", without points, Includes: Ref. 8 - 12

1шт.

8

D57550

EDGE, CUTTING

1шт.

9

D57551

EDGE, CUTTING

1шт.

10

D57591

EDGE, CUTTING

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

4шт.

7

E45317

BUCKET

30", Includes: Ref. 8 - 12

1шт.

7

E45318

BUCKET

30", Includes: Ref. 8 - 12

1шт.

Only for E37619 - E33971/E45316/318 buckets

1шт.

7

E42533

BUCKET

30", without points, Includes: Ref. 8 - 12

1шт.

8

D57550

EDGE, CUTTING

1шт.

9

D57551

EDGE, CUTTING

1шт.

10

D57559

EDGE, CUTTING

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

4шт.

7

E45319

BUCKET

36", Includes: Ref. 8 - 12

1шт.

7

E42534

BUCKET

36", without points, Includes: Ref. 8 - 12

1шт.

8

D57550

EDGE, CUTTING

1шт.

9

D57551

EDGE, CUTTING

1шт.

10

D57595

EDGE, CUTTING

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

4шт.

D48035

TOOTH

ASSY, E46745 or D139707, Includes: Ref. 13 - 15

1шт.

Use D16603 for 12" buckets

1шт.

13

D48212

SHANK

D91887

1шт.

14

D39093

TOOTH

point, D51750

1шт.

15

D39094

BUCKET TOOTH KEY

PIN flex

1шт.

16

D44193

TOOTH

point, heavy duty points

1шт.

D139707

TOOTH

ASSY "H & Tooth Co."

1шт.

13

D91887

DOOR

SHANK

1шт.

14

D51750

BUCKET TOOTH POINT

1шт.

15

D39094

BUCKET TOOTH KEY

PIN flex

1шт.

E46745

TOOTH ASSY "Ramco", Includes: Ref. 13 - 15

1шт.

13

E46265

DOOR

SHANK

1шт.

14

E46746

POINT

1шт.

15

E46267

LARGE PIN

PIN, LARGE flex

1шт.

D41679

KIT

pin, E46745 or D139707, Includes: Ref. 17 and 18

1шт.

Use D16603 for 12" buckets

1шт.

17

D30899

PIVOT PIN,38.1mm OD x 338.14mm L

1шт.

18

D25279

SNAP RING,M35, Int

2шт.

D16603

KIT

pin, E46745 or D139707, Includes: Ref. 19 - 22

1шт.

Use D16603 for 12" buckets

1шт.

19

D55584

PIN,44.45mm OD x 327.15mm L

1шт.

20

D25280

SNAP RING,#175, Ext

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

22

NSS

NOT SOLD SEPARAT

STRAP (For identification)

1шт.

Only for E37619 - E33971/E45316/318 buckets

1шт.
